24GHz Altimeter Radar NRA24: 0.5-200M

Model No.: NRA24

24GHz Altimeter Radar NRA24 is a compact K-band radar altimeter adopts 24GHz Band, with the advantages of 0.1m measuring accuracy, small size, high sensitivity, light weight, easy integration and stable performance, which satisfies the application requirements in unmanned aerial vehicle (UAV), helicopters, small airships and other field. Its product performance has been recognized by many partners.

Series：

24GHz MMW radar

Application：

Safety range measurement and collision avoidance in UAVs

Features：

Work in 24GHz Band for the detection of moving targets

Adaptable for grasslands and other environment

With UART interface

With measurement accuracy of 0.1m

With the measurement range of 200m

RoHS compliant

Data Sheet:

PARAMETER	CONDITIONS	MIN	TYP	MAX	UNITS
System performance
Transmit band		24.00		24.20	GHz
Output power(EIRP)	adjustable		25		dBm
Modulation type		FMCW
Update rate		42			Hz
Power consumption	@5V DC 25℃	1.4	1.5	1.8	W
Communication interface		CAN/UART
Range-measuring performance
Distance-measuring range	@0 dBsm	0.5		200	m
Ranging accuracy			±0.1		m
Antenna features
Beam width/TX	azimuth(-6dB)		28		deg
Beam width/TX	elevation(-6dB)		18		deg
Other characteristics
Supply voltage		5	12	16	V DC
Weight	includeing shell and Line		95		g
Outline dimensions	including shell	130x70x14.5 (LxWxH)			mm

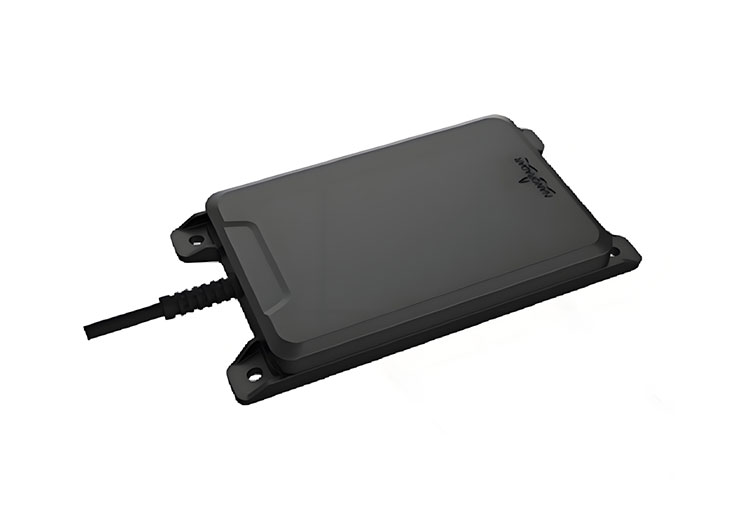

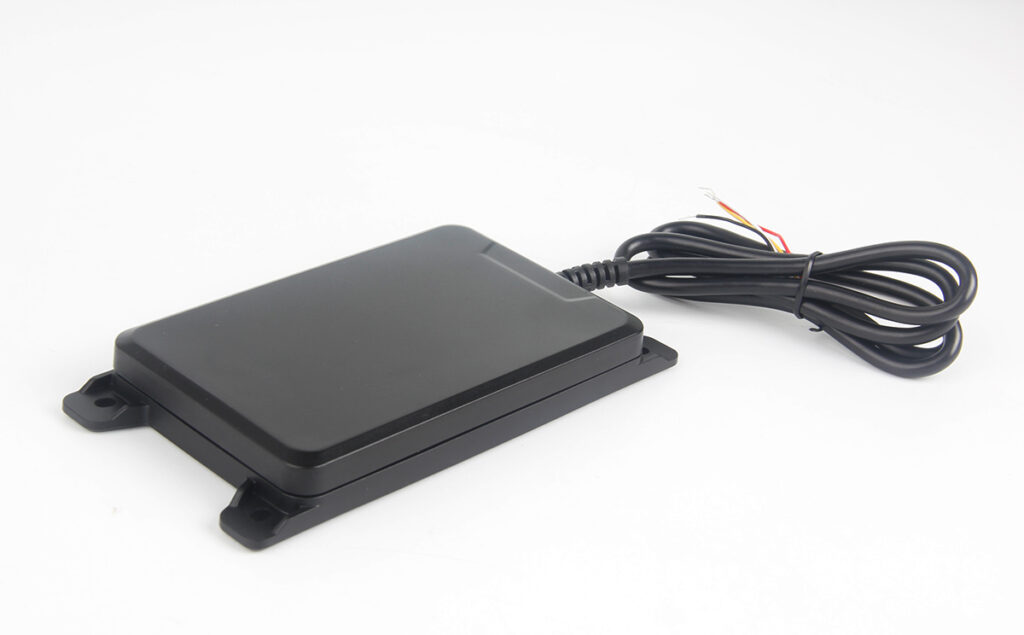

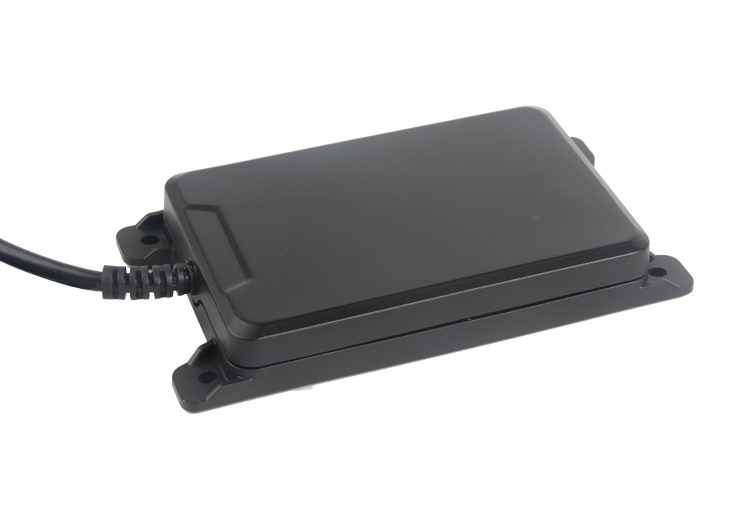

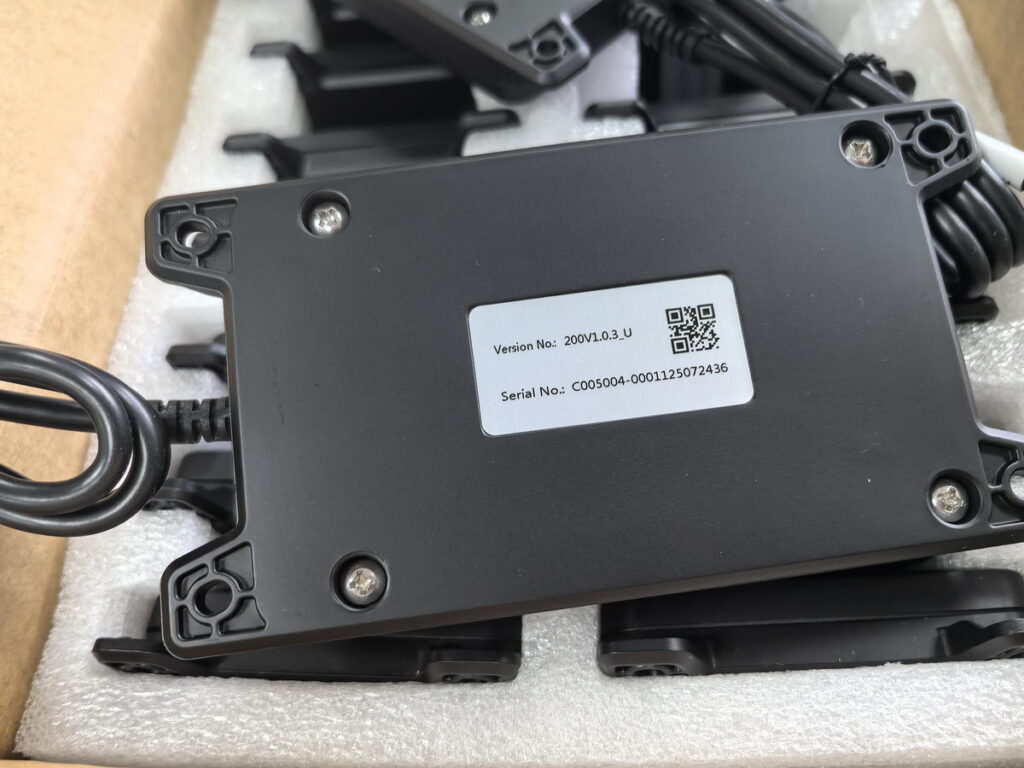

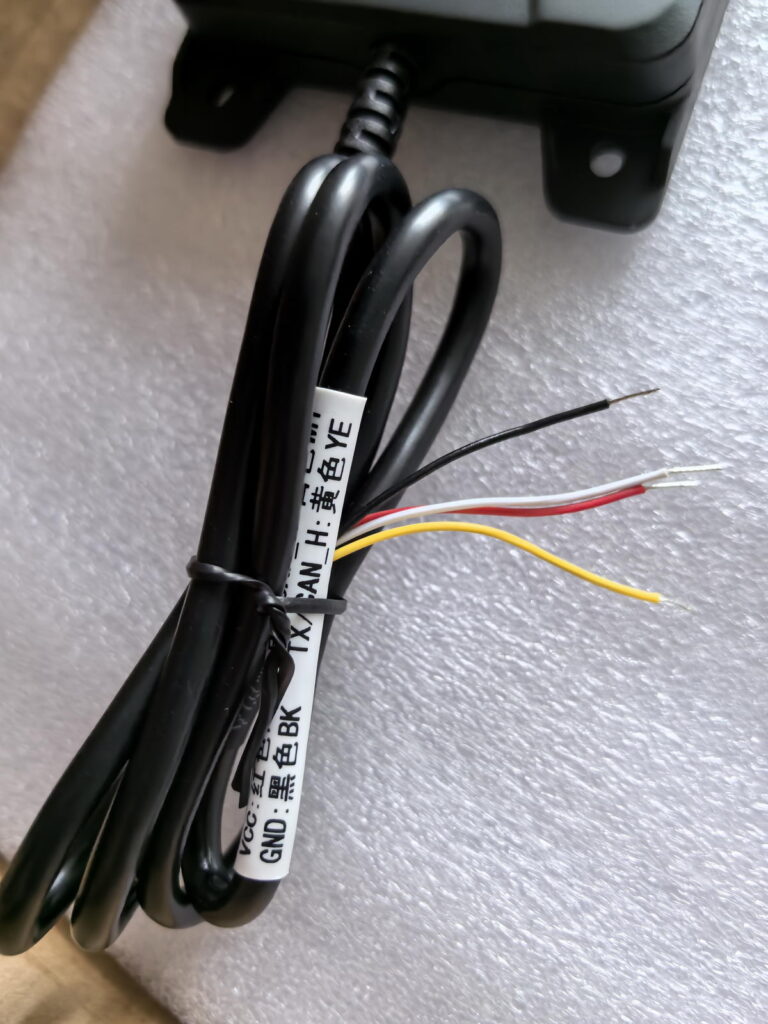

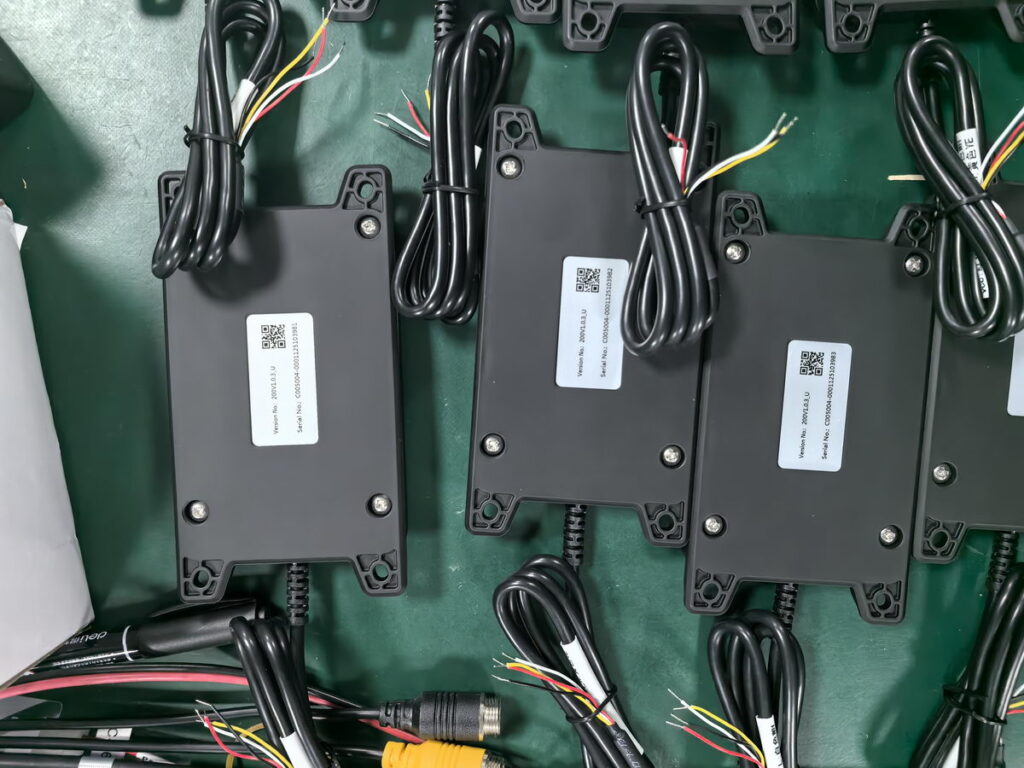

Appearance:

With the ruggedized design and all weather working requirement, this 24GHz altimeter radar can be strategically placed on the exterior , superior performance in all tough working environment.

Configure Tools:

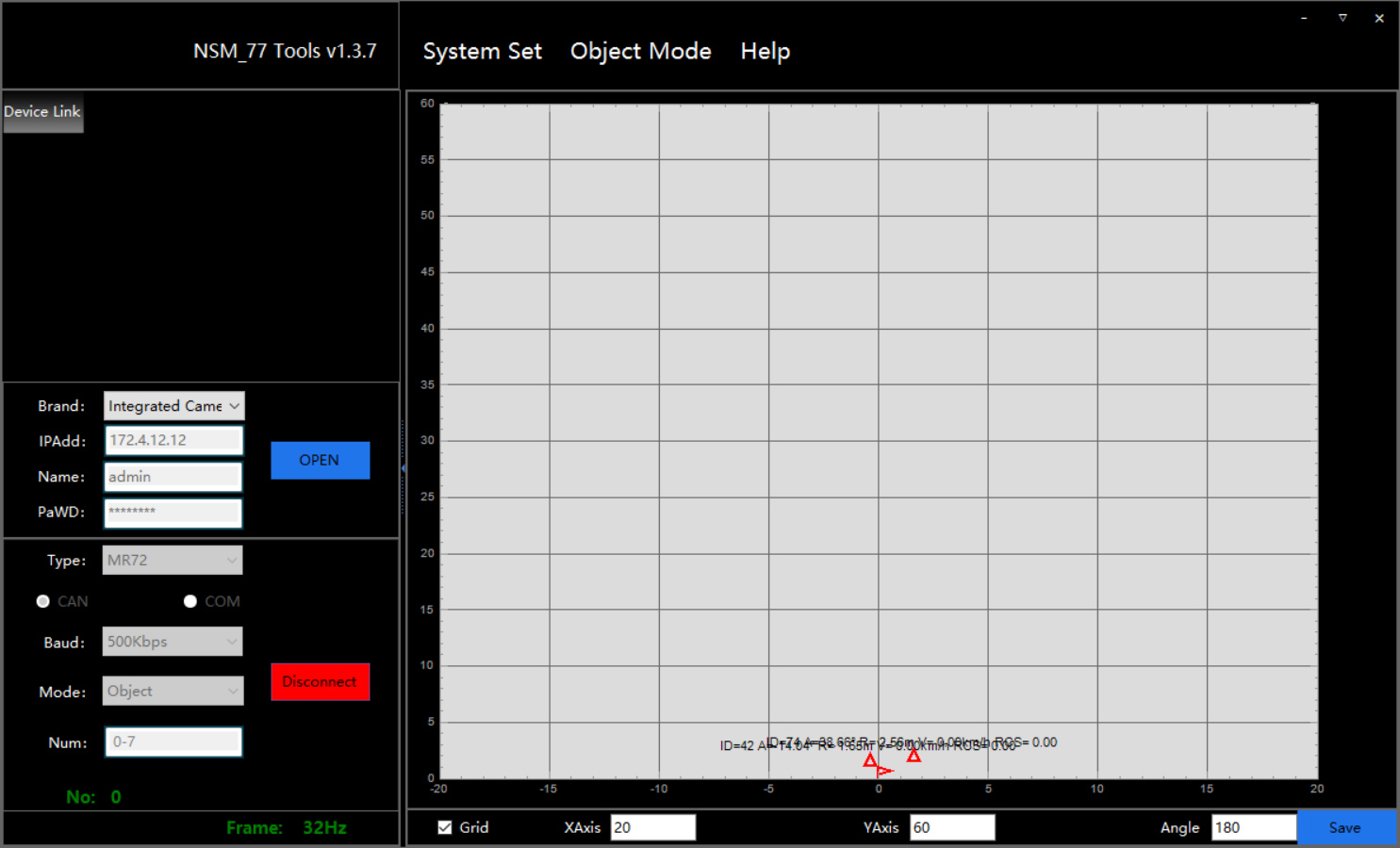

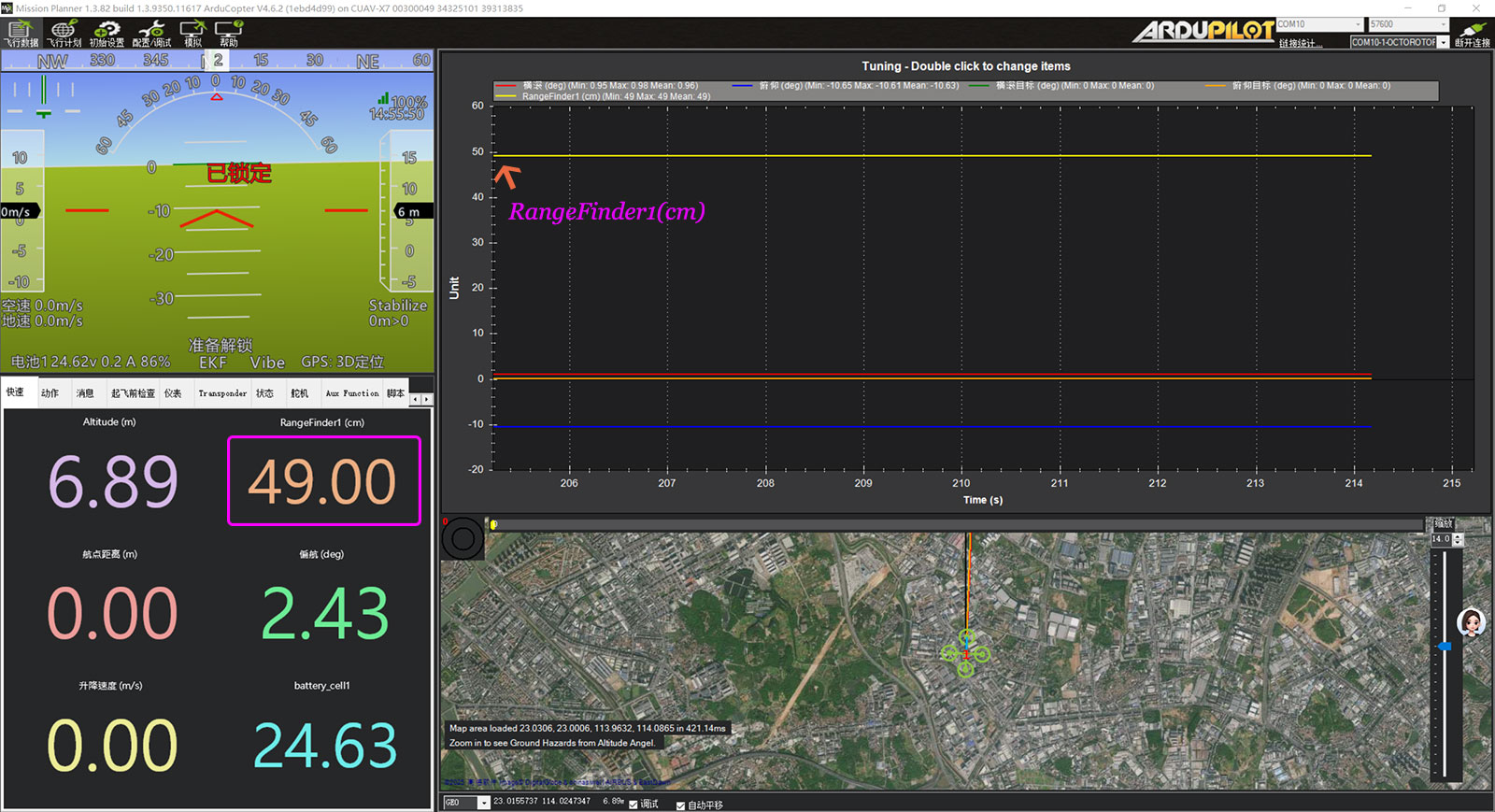

The sensor can be debugged through debuging software on the uphost computer.
