How Multi-Lane 24GHz Traffic Speed Radar Systems Are Implemented for Accurate Lane-Level Monitoring

Multi-Lane 24GHz Traffic Speed Radar can monitor each vehicle as it moves across multiple lanes. This advanced technology utilizes high-frequency radar and specialized antennas to accurately detect the speed of numerous vehicles in heavy traffic conditions. Engineers employ digital beamforming and FMCW waveforms to precisely identify which vehicle is in which lane. Multi-lanes 24GHz Traffic Speed Radar plays a crucial role in automated speed enforcement and traffic monitoring, ensuring every vehicle is measured within its own lane. These systems are essential for smart transportation upgrades and innovative traffic surveillance solutions.

Key Takeaways

• Multi-lane 24GHz radar can watch up to four lanes at once. This makes it good for busy roads and highways.

• Advanced antennas and digital beamforming help the radar follow many cars in different lanes. It does this accurately and in real time.

• The radar works well in all weather, like rain, fog, and snow. This means it can check speeds any time.

• Special calibration and anti-interference methods keep the radar correct. They help the radar know which car is in which lane.

• Cities that use this radar system make roads safer. They can catch speeding cars and control traffic better.

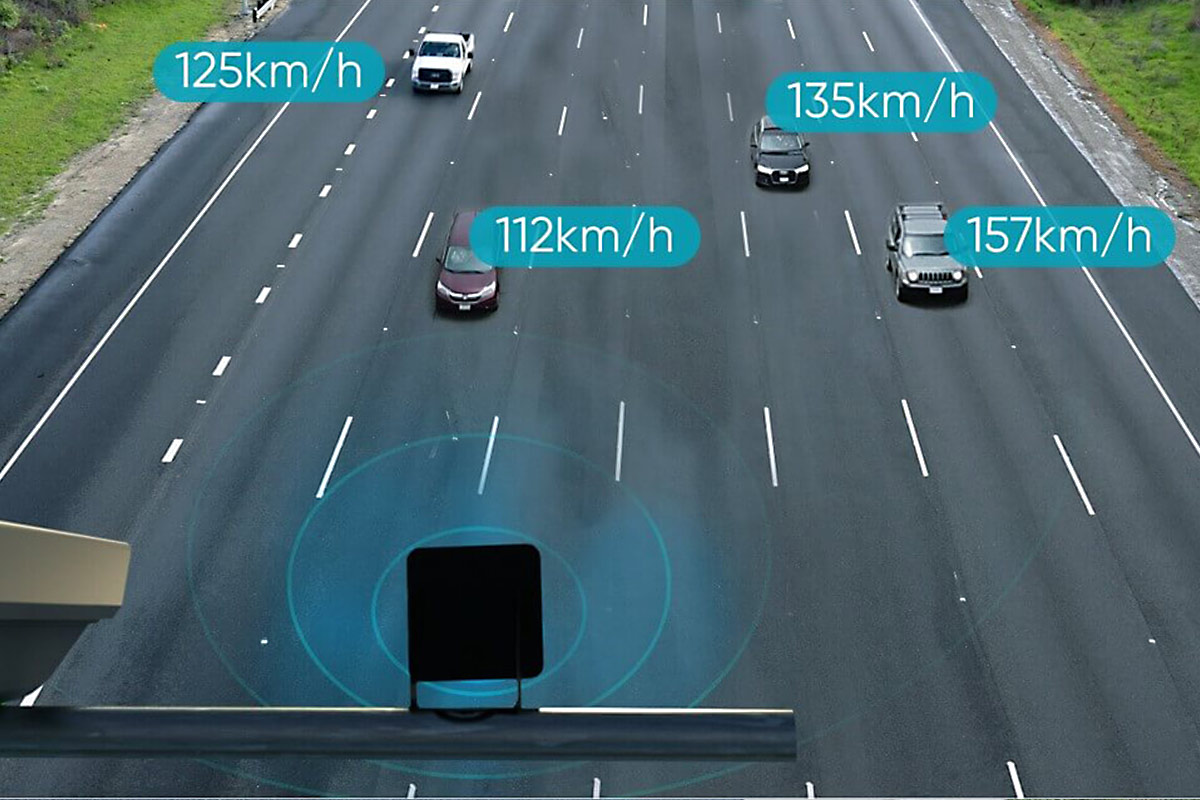

Multi-Lane 24GHz Traffic Speed Radar

Single-Lane vs Multi-Lane Radar

Single-lane and multi-lane 24ghz traffic speed radar systems do different jobs. Single-lane radar checks just one lane at a time. It is good for toll booths or small roads. Multi-lane 24ghz traffic speed radar can watch up to four lanes at once. This makes it great for highways and busy roads. The table below shows how they are different:

Feature	Multi-lane 24GHz Radar (ZT-TSRK04LE)	Single-lane 24GHz Radar (ZT-TSRK01LE)
Lane Coverage	Up to 4 lanes at the same time	Made for watching one lane only
Installation Location	Gantry or L-shape pole, 5-10m high	Meant to cover just one lane
Tracking Distance	15-60 meters from where it detects	Not listed
Speed Range	5-250 Km/h	Not listed
Position Accuracy	±0.5 meters	Not listed
Coverage Area	Many lanes, wide roads	One lane, small roads

Multi-lane radar systems help smart transportation projects. They give wide coverage and help with hard traffic monitoring.

Key Hardware Differences

A 24ghz doppler radar sensor in a single-lane system uses a narrow-beam antenna. This antenna looks at just one lane and ignores other lanes. A multi-lane 24ghz traffic speed radar uses a phased array antenna. This antenna makes many beams at the same time. Each beam looks at a different lane. The multi-lane system also uses digital beamforming. This lets the radar follow many cars at once. Engineers put multi-lane radar on gantries or tall poles to see all lanes well. These hardware choices make multi-lane radar good for smart transportation upgrades.

Signal Processing Advances

Modern 24ghz traffic speed radar systems use new signal processing technique to tell cars in different lanes apart. The 24ghz doppler radar sensor gets data about distance, speed, and angle. The system uses algorithms to sort cars by lane. It can follow more than ten cars at once. The radar uses real-time data to track each car as it moves. This helps traffic monitoring by giving correct lane-level information. The signal processing technique also lowers mistakes when cars are close together. Multi-lane 24ghz traffic speed radar helps keep traffic safe and running well.

Multi-Lane Speed Enforcement Challenges

Lane Discrimination Issues

It is hard for radar to tell which car is in which lane. The number of lanes can change at places like intersections. This makes it tough for the radar to follow every car. Big trucks or buses can block the view of lane lines from above. This can confuse the system and make it miss some cars. Sometimes, a car’s roof color looks like the lane lines. This makes it harder for the radar to see the lanes. If a camera moves after a crash, the radar may not match up with the lanes. This can cause mistakes in catching cars that are speeding.

Engineers use metal lane reflectors and impulse radio ultra-wideband radar to help. These reflectors send back a strong signal to the radar. This helps the radar find each lane, even if a car moves sideways. This works well in fog or bright sunlight. Cameras and LiDAR may not work well in these conditions. The system looks for patterns in the signals that bounce back. This helps it know where the lanes are. This way, the system can still catch speeding cars, even if the lane lines are hard to see.

Multi-Target Tracking

Multi-lane speed enforcement needs to watch many cars at once. Heavy traffic and lanes close together make this harder. The radar uses phased array technology and digital beamforming to scan up to fourteen lanes fast. AI algorithms help the radar follow each car, even if some cars block others. The system can track up to 512 cars at the same time. This keeps the system good at catching speeding cars. The radar sorts cars by lane and speed. This gives accurate results, even when traffic is busy.

Note: Many lane detection systems for self-driving cars do not work well for city speeding enforcement. Multi-lane radar systems are built strong and get regular checks to keep working well.

Anti-Interference Methods

Other radars using the same 24GHz band can cause problems. This can make it hard for the radar to work right. Engineers use special modulation strategies to make their radar signals stand out. Digital beamforming helps block signals from other sources. These methods help the radar keep catching speeding cars and seeing lanes clearly. The system also uses AI to spot and ignore false signals from snow, ice, or rain. This keeps the radar working well in all kinds of weather.

• Key anti-interference techniques:

  • Use special modulation strategies to tell radar signals apart.

  • Digital beamforming blocks signals that are not wanted.

  • AI algorithms help keep results correct in bad weather.

These solutions help multi-lane speed enforcement systems work well. They help keep roads safe and make sure speeding cars are caught.

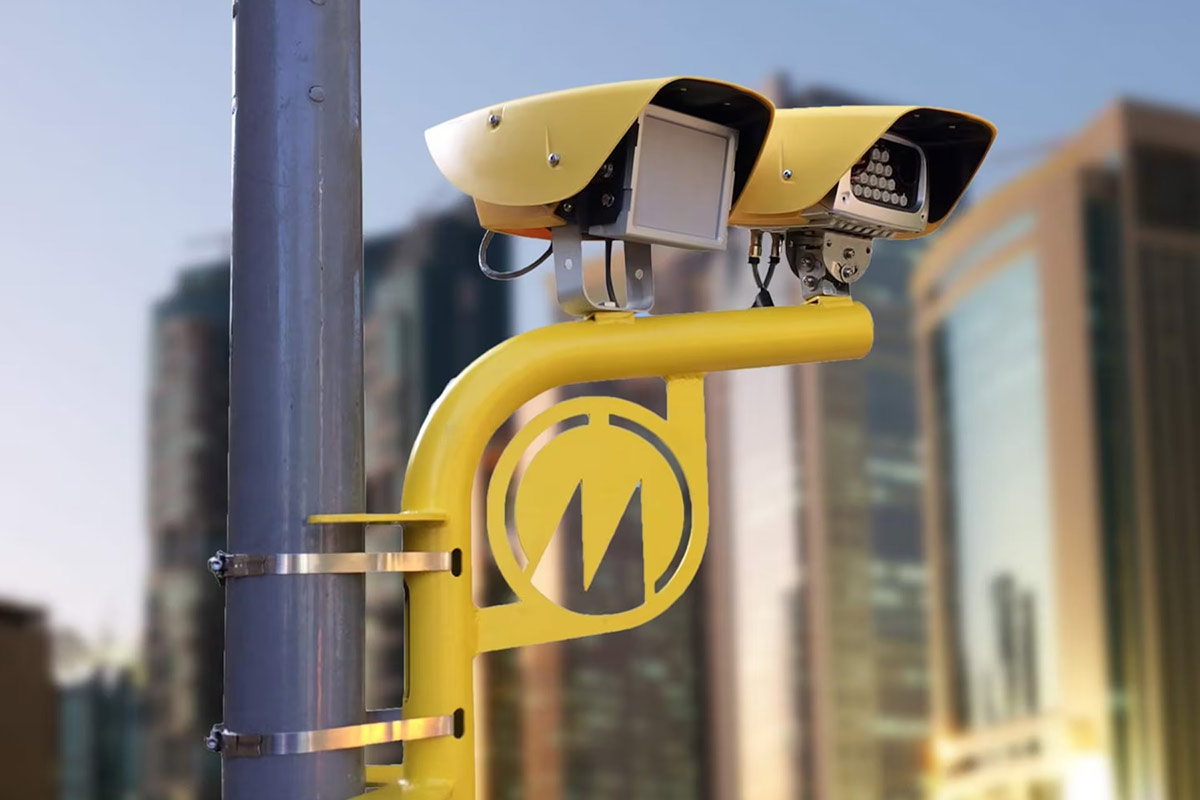

Technical Implementation of Traffic Radar-Based Speed Meter

24GHz Doppler Radar Sensor Design

A 24ghz doppler radar sensor is the main part of a modern traffic radar-based speed meter. Engineers pick this sensor because it measures speed very well and works in any weather. The sensor uses K Band Doppler millimeter wave radar. This lets it find cars from 1 to 300 meters away. It can check speeds from 1 km/h up to 300 km/h. This makes it good for highways and city streets.

The 24ghz doppler radar sensor works with advanced AI algorithms. These help the system tell different cars apart and follow each one. The sensor knows if a car is coming or going. It keeps working even in rain, snow, fog, or dust. The sensor has many ways to connect, like RS485, RS232, and Wi-Fi. This makes it easy to work with other systems.

Feature Category	Details
Radar Technology	K Band Doppler millimeter wave radar
AI Capabilities	Advanced AI algorithms for vehicle feature distinction and target tracking
Accuracy	Distance accuracy ±0.5m, speed accuracy enhanced by spectrum zoom
Detection Range	1-300 meters
Speed Range	1-300 km/h
Direction Recognition	Can distinguish vehicle driving direction (coming and going)
Environmental Adaptability	Performance unaffected by light, dust, rain, snow, haze, and other harsh conditions
Communication Interfaces	RS485, RS232, Wi-Fi
Power and Protection	Transmit power 20 dBm, power consumption 1.6W, protection class IP66
Installation and Integration	Supports multi-lane speed monitoring, integration with video recording and networking units
Physical Dimensions	148 x 124.5 x 26.5 mm

The 24ghz doppler radar sensor lets the speed meter watch many lanes. It can also work with video systems for better results.

Digital Beamforming and FMCW

The 24ghz doppler radar sensor uses mimo and dbf technology to see clearly across many lanes. Phased array antennas help with this job. They let the radar move its beams without moving any parts. This helps the radar see a big area and spot cars in different lanes.

Digital beamforming lets the radar make many thin beams. Each beam looks at one lane. This helps the system tell cars apart, even if they are close. Mimo and dbf technology also make the radar stronger and clearer. This means it can find cars in heavy traffic.

The 24ghz doppler radar sensor uses FMCW technology to measure speed and distance. The radar sends out a signal that changes its frequency. When the signal bounces off a car, it comes back to the radar. The radar checks the difference in the signals. This tells the radar how far away the car is and how fast it is moving.

Feature	Description
Frequency Band	60 GHz ISM band
Radar Type	Frequency Modulated Continuous Wave (FMCW) system
Antenna Technology	Multi-antenna transceiver technology
Lane Support	1 to 4 lanes horizontally
Target Capacity	Up to 32 targets simultaneously
Detection Distance	Up to 90 meters
Speed Measurement Range	-200 km/h to +200 km/h
Speed Measurement Accuracy	±0.36 km/h
Distance Measurement Range	2 to 90 meters
Distance Measurement Accuracy	±0.4 meter
Additional Capabilities	Lane division, output of speed, distance, angle, target energy, direction, and destination
Environmental Robustness	All-day, all-weather operation including rain, snow, fog, strong wind, ice, dust

With digital beamforming, mimo and dbf technology, and FMCW, the 24ghz doppler radar sensor can measure speed and find lanes very well. The system can watch up to 32 cars at once, even in bad weather.

Real-Time Data Processing

Real-time data processing is very important for a traffic radar-based speed meter. The 24ghz doppler radar sensor collects data about each car’s speed, distance, and angle. The system uses mimo and dbf technology to handle this data fast. AI algorithms look at the radar signals and sort each car by lane.

The radar can follow up to 512 cars at the same time. It updates each car’s speed and place right away. The system uses a real-time detection algorithm so no car is missed. This is needed for measuring speed and keeping roads safe.

The 24ghz doppler radar sensor works with phased array antennas to scan up to 14 lanes. The radar gives instant details about each car, like its lane, speed, and direction. The system can sort cars and give traffic data right away. This makes the 24ghz traffic speed radar a strong tool for new speed measurement systems.

Tip: Real-time multi-target tracking helps traffic managers act fast when road conditions change and makes speed checks more accurate.

The 24ghz doppler radar sensor, with mimo and dbf technology, helps the speed meter give correct lane-level speed checks for every car on the road.

Installation and Validation

Sensor Placement

Engineers put multi-lane 24GHz radar sensors on tall poles or gantries above roads. The sensor needs to see every lane to measure speed and length for each car. The best spot lets the radar watch all lanes with no blind spots. Installers check the angle and height to fit the road. They use a wide view so the sensor works in any weather. Where the sensor goes changes how well it measures speed and length for each car. Good placement also helps with checking speed and range later.

Calibration and Accuracy

Calibration is needed to make sure speed and length measurements are right. Technicians do calibration at different times:

• End-of-line calibration happens when the sensor is made. Workers use special targets to set the right angles.

• After repairs, workshop service calibration checks if the sensor is lined up.

• Dynamic online alignment runs while the sensor works. Algorithms watch for mistakes and fix them to keep things accurate.

• Accelerometer-based dynamic alignment uses 3D accelerometers on the radar and car frame. This way finds angle mistakes and needs careful mounting.

• Radar measurement-based dynamic alignment uses just radar data. The system looks at ground reflections to fix mistakes by itself.

• Multi-radar systems use more than one sensor and targets. This makes alignment better but needs more space.

A new way uses a programmable radar target simulator. This device copies Doppler shifts for speed and length checks. It helps with full-range and very accurate speed calibration. The simulator works for speeds from 25 to 200 km/h. The goal is about 1.6 km/h accuracy at 90 km/h. Modulation tricks copy real car Doppler signals. This design saves money and helps with upgrades. Speed and range checks make sure the radar follows the law.

Real-World Performance

Teams test the radar after it is set up and checked. They use real cars to see if speed and length are measured in every lane. The system must work in rain, fog, snow, and dust for all-weather use. Teams check radar results against other tools. They do speed, range, and length checks at different times. The radar must pass these tests for every car and lane. Real-world tests show the system can measure speed and length well. Ongoing checks keep the system ready every day.

Multi-lane 24GHz traffic speed radar systems work well and are useful for catching speeding cars. The table below shows their main strengths:

Technical Strength	Description
Frequency Band	24 GHz ISM band, small size, no special permits needed
Detection Technology	MIMO and digital beamforming help find cars in each lane
Weather Resistance	IP67-rated, so it works in rain, snow, fog, and dust
Real-Time Performance	Updates every 50 ms for quick, correct speed checks
Vehicle Capture Rate	Catches at least 99% of cars, even in busy traffic

Cities that use these systems have safer roads and smoother traffic. Multi-lane radar checks each car’s speed and lane, even in bad weather or when there are lots of cars. These systems count cars, watch how lanes are used, and track how traffic moves. They help cities manage traffic and keep drivers safe. In the future, radar and video will work together. This will mix radar’s speed and distance with video’s clear pictures. This teamwork will make lane watching better and help cities keep track of every car.

FAQ

What makes multi-lane 24GHz traffic speed radar important for automated speed enforcement?

Multi-lane 24GHz traffic speed radar helps cities catch speeding cars on busy roads. The system uses mimo and dbf technology to check the speed of cars in many lanes. It helps with automated speed checks and watches every car in each lane.

How does the 24GHz doppler radar sensor achieve high accuracy of speed measurement?

The 24GHz doppler radar sensor uses a real-time algorithm and signal processing. It checks how fast and how long each car is. This sensor gives very accurate speed results, even when traffic is heavy or the weather is bad. That makes it great for watching traffic.

Can the radar system work in all-weather operation?

Yes, the 24GHz traffic speed radar works in any weather. Rain, fog, snow, or dust do not stop it from working. The system keeps checking lanes and car speeds for road safety and smart transportation.

Why is calibration and verification important for these systems?

Calibration and verification make sure the radar speed meter gives correct results. Speed and range checks help keep the system working well. This helps the radar catch more cars and measure speed right for traffic checks.

How does the system handle multiple vehicles in different lanes?

The radar uses mimo and dbf technology to follow each car in every lane. The system splits signals for each car, even when lanes are full. This lets it measure speed and length for each car and helps with speed checks and traffic watching.
