What are the key components of a drone and how do they work
When you look at a drone, you see many important parts working together. The main drone components include the frame and arms for structure, motors and propellers for lift, batteries for power, and a flight controller to keep everything stable. Sensors help with navigation, while landing gear protects the drone during takeoff and landing. Cameras and gimbals let you capture images from the sky. Each of these parts of a drone plays a key role in how drones fly, stay safe, and complete tasks. Knowing how these key components work helps you assemble, repair, or choose the right drone. Material choices and design details can change how well a drone handles different jobs.
Key Takeaways
A drone’s frame and arms provide strong, lightweight support that keeps it stable and protects parts during flight and crashes.
Motors and propellers work together to lift the drone, and choosing the right types improves speed, power, and flight time.
The flight controller acts as the drone’s brain, using sensors to keep it balanced and respond to your commands smoothly.
Special materials like carbon fiber make drones lighter and stronger, helping them fly longer and handle tough conditions.
Different drones need different parts; for example, agricultural drones have spraying tanks and sensors, while racing drones focus on speed and agility.
Drone Components
Frame & Structure
The frame is the backbone of your drone. It holds all the parts of a drone together and gives the drone its shape. You can think of the drone frame as the skeleton that supports everything else. Most frames use materials like carbon fiber, plastic, or metal. Carbon fiber is very strong and light, which helps your drone fly longer and handle bumps better. Plastic frames are lighter and cheaper, but they do not last as long or hold heavy loads well. Metal frames, such as aluminum, add strength but can make the drone heavier.
Tip: A well-designed drone frame improves flight stability and protects important parts of a drone during crashes.
The shape and size of the frame also matter. Some frames have a unibody design, which makes them lighter but harder to fix if something breaks. Others use replaceable arms, so you can swap out a broken part without changing the whole frame.
Arms
The arms connect the motors and propellers to the main body. These parts of a drone must be strong because they hold the motors, which spin fast and create lift. The number of arms depends on the type of drone. For example, a quadcopter has four arms, while a hexacopter has six.
When you carry a camera or other equipment, the arms must support the extra weight. Thicker arms made from carbon fiber or strong plastic help keep the drone steady, even with a heavy payload. If the arms are too thin or weak, the drone may wobble or even crash. Good arm design also helps with maneuverability, letting you turn and move smoothly in the air.
Key points about drone arms:
They must balance strength and weight.
Proper arm thickness and material improve crash resistance.
Strong arms help the drone carry more weight without losing stability.
Landing Gear
Landing gear protects your drone when it touches down. This part of a drone absorbs shock and keeps the sensitive parts, like the camera or gimbal, away from dirt and rocks. Most landing gear uses lightweight plastic, carbon fiber, or rubber. Some landing gear folds up to save space, while others stay fixed for extra strength.
Landing Gear Type | Material/Design | How It Helps Your Drone |
|---|---|---|
Elevated Leg Extensions | Plastic or carbon fiber | Raises the drone, protects camera |
Foldable Landing Gear | High-strength plastic | Easy to store, adds safety |
Fixed Landing Gear | ABS or rubber | Durable, absorbs impact |
If you fly over rough ground or tall grass, higher landing gear gives more clearance and keeps the propellers safe. Lightweight gear will not slow your drone down or drain the battery quickly.
Materials
The materials you choose for the parts of a drone affect how well it flies and how long it lasts. Here is a quick look at common materials:
Material | Weight | Strength & Durability | Best Use |
|---|---|---|---|
Carbon Fiber | Very light | Very strong, resists corrosion | Main drone frame, arms |
Plastic | Light | Less strong, flexible | Covers, landing gear, light drones |
Aluminum | Moderate | Strong, resists rust | Frames, arms for larger drones |
Steel | Heavy | Very strong | Heavy-duty drones, special parts |
Titanium | Moderate | Extremely strong | High-end, specialized drone frames |
Composite Materials | Very light | Strong, custom shapes | Advanced drone components |
You get better flight times and more stable flights with lighter, stronger materials. Carbon fiber stands out because it gives you a tough, lightweight drone that can handle rough landings and heavy loads. Plastic works well for small, low-cost drones or for non-structural parts of a drone. Metals like aluminum and titanium add strength but can make the drone heavier.
Note: Choosing the right materials for your drone components helps you balance cost, strength, and flight performance.
When you understand how each part of a drone works and what materials fit your needs, you can build, repair, or choose the best drone for any job.
Propulsion & Power
Motors
Motors are one of the most important parts of a drone. You use motors to spin the drone propellers and create lift. Most modern drones use brushless motors because they last longer and work more efficiently than brushed motors. The type of motor you choose affects how much weight your drone can carry and how fast it can fly. For example, heavy-lift motors help agricultural drones carry large payloads, while racing motors give you quick speed and sharp turns.
Motor Type | Best For | Key Feature |
|---|---|---|
Brushless | Most drones | High efficiency, long life |
Heavy-Lift | Delivery, agriculture | More torque, big payloads |
Racing | FPV racing drones | Fast RPM, quick response |
Propellers
Drone propellers turn the power from the motors into lift. The size, shape, and material of the propellers change how your drone flies. Larger propellers move more air and give you more lift, but they use more power. Propeller pitch also matters. A higher pitch means more thrust, but it needs more energy. Carbon fiber propellers are strong and quiet, while plastic ones are lighter and cost less. Matching the right propellers with your motors helps you get the best performance and flight time.
Tip: If you want a quieter drone, choose propellers with more blades and lower RPM.
ESC (Electronic Speed Controller)
The ESC is a smart part of a drone that connects the flight controller, battery, and motors. It controls how fast each motor spins by adjusting the power sent to it. Each motor has its own ESC, so you can change the speed of each propeller separately. This lets you turn, hover, and fly smoothly. ESCs also protect your drone by stopping the motors if they get too hot or if the battery runs low.
ESCs help you:
Control lift and direction
Keep the drone stable in the air
Battery & PMU
The battery gives your drone the energy it needs to fly. Most drones use lithium-polymer (LiPo) batteries because they are light and store a lot of power. LiPo batteries help you fly longer and move faster, but you must handle them with care. Some drones use lithium-ion batteries for extra safety and longer life, though they are heavier.
The Power Management Unit (PMU) is another key part of a drone. It makes sure each part gets the right amount of power. The PMU checks battery levels, keeps the power steady, and protects against overloads. This helps your drone fly safely and keeps all parts working well together.
Note: Always check your battery and PMU before flying to avoid sudden power loss.
Control & Navigation
Flight Controller
The flight controller acts as the brain of your drone. You use this part to connect all the main parts of a drone and make them work together. The flight controller takes your commands and sensor data, then tells the motors how to move. This keeps your drone stable and balanced in the air. You can switch between different flight modes, like manual or automatic, using the control system. Many flight controllers include safety features, such as return-to-home and low battery warnings, to protect your drone.
The flight controller:
Uses sensors to check position and movement.
Adjusts motor speeds for smooth flight.
Runs special software for stability and automation.
Sensors
Sensors help your drone understand its environment. The most common sensors in the control system are gyroscopes, accelerometers, barometers, and magnetometers. The IMU (Inertial Measurement Unit) combines gyroscopes and accelerometers to measure tilt, speed, and direction. Barometers measure air pressure, which helps your drone hold a steady height. Magnetometers act like a compass, showing which way your drone faces. These sensors work together to keep your flight system stable, even if the wind changes or you make quick turns.
Tip: Sensor fusion combines data from different sensors for better accuracy and smoother flight.
GPS & RTK
You use GPS to find your drone’s position on Earth. Standard GPS gives you meter-level accuracy, which works for most flights. Some drones use RTK (Real-Time Kinematic) systems for even better results. RTK uses a base station to send corrections, giving you centimeter-level accuracy. This helps when you need precise mapping or want your drone to follow a set path exactly. RTK works best with a strong signal, so always check your connection before flying in remote areas.
Navigation System | Accuracy | Best Use |
|---|---|---|
GPS | Meter-level | General navigation, hobby flying |
RTK | Centimeter-level | Mapping, surveying, precision |
Redundancy
Redundancy means you have backup systems in your drone. The control system may include extra sensors or even a second flight controller. If one part fails, the backup takes over. This keeps your drone safe during important missions. Some drones use two communication links or extra batteries for more reliability. Redundancy in the flight system and control system helps prevent crashes and keeps your drone flying, even if something goes wrong.
Note: Redundant parts of a drone are important for safety, especially in professional or critical jobs.
Altimeter radar sensor
The altimeter radar sensor is a critical component in unmanned aerial vehicles (UAVs), primarily responsible for measuring the vertical distance between the UAV and the ground (or other target surfaces) in real time. Its core functions are closely tied to the UAV’s flight stability, safety, and operational accuracy, especially in complex environments where GPS signals may be weak or unreliable.
Communication & Payload
Control Station
You use a control station to operate your drone from a distance. Control stations come in different types, each designed for specific needs. Portable ground control stations work well for field operations like mapping or emergency response. Fixed ground control stations stay in one place and help with large-scale or continuous drone missions. Mobile ground control stations mount on vehicles, so you can control your drone while moving. Each station gives you a way to manage flight, payloads, and receive real-time data. The control system in these stations lets you see what your drone sees and make quick decisions.
Type of Ground Control Station | Description | Role in Remote Operation |
|---|---|---|
Portable | Lightweight, easy to carry | Great for field work and quick setup |
Fixed | Permanent, advanced systems | Best for big projects and long-term use |
Mobile | Vehicle-mounted | Lets you control drones on the move |
Data Transmission
Your drone needs a strong link to send and receive information. Data transmission uses several technologies to keep you connected. Radio frequency (RF) transmission gives you reliable, low-latency communication over long distances. Cellular networks use phone towers to provide wide coverage and fast video streaming. Satellite communication helps when you fly your drone in remote places. Wi-Fi and Bluetooth work for short-range tasks. Some drones use edge computing to process data on board, which reduces delays. Cloud-based processing lets you analyze data without overloading your drone. These systems help your control system keep the drone safe and responsive.
RF transmission: Reliable and fast for long distances
Cellular: Good for HD video and telemetry
Satellite: Works in remote areas
Wi-Fi/Bluetooth: Best for short-range control
Camera & Gimbal
A camera and gimbal help your drone capture clear images and smooth video. The gimbal stabilizes the camera by adjusting for movement in three directions: yaw, pitch, and roll. This keeps your footage steady, even if your drone shakes or turns quickly. Mechanical gimbals use motors and sensors to react fast and prevent blurry shots. Some drones combine mechanical and electronic stabilization for the best results. You can use these tools for filmmaking, inspections, or search and rescue. The gimbal makes sure your drone delivers professional-quality images every time.
Mission Payloads
You can equip your drone with special mission payloads for different jobs. High-resolution cameras help with mapping and inspections. Thermal imaging sensors find heat sources, which is useful in search and rescue. Multispectral cameras check plant health in agriculture. LiDAR systems create 3D maps and scan terrain. Agricultural drones carry tanks for spraying crops. Some drones use manipulator arms, spotlights, or loudspeakers for unique tasks. Each payload connects to your drone with special mounts and uses power from the main system. These tools let your drone handle many types of missions with accuracy and efficiency.
Key Components for Specialized Drones
Agricultural Drone Components
You will find that agricultural drones have unique key components designed for tough field work. These drones use a strong flight system built from carbon fiber or engineering plastics. This helps them resist water, chemicals, and rough landings. The mission payload system stands out. You can attach pesticide or seed tanks made to handle chemicals. Spraying systems use special nozzles and pumps to control droplet size and flow. Some drones carry sowing systems with hoppers and conveyors for seeds or fertilizer.
Sensors play a big role. Multispectral and thermal cameras help you monitor crops and spot problems early. GPS and RTK modules give you precise mapping, so you can cover every part of your field. LiDAR sensors help create 3D maps of your land. The energy system uses high-capacity lithium polymer batteries and smart power management to keep your drone flying longer. Communication systems use strong radio bands for control and fast image transmission.
Component System | Unique Requirements for Agricultural Drones | Difference from Standard Consumer Drones |
|---|---|---|
Mission Payload System | Chemical-resistant tanks, adjustable nozzles, sowing systems, advanced sensors, GPS/RTK, LiDAR | Consumer drones lack these specialized payloads and sensors. |
Flight System | Multi-rotor or VTOL frames, waterproof and anti-corrosion design | Consumer drones do not have these features. |
Energy System | High-capacity batteries, battery health monitoring | Consumer drones use smaller batteries. |
Communication System | Long-range, strong penetration, low-latency HD image transmission | Consumer drones have shorter range and less adaptability. |
Auxiliary Components | Radar obstacle avoidance, redundancy, heat dissipation | Consumer drones often lack these advanced systems. |
Racing Drone Parts

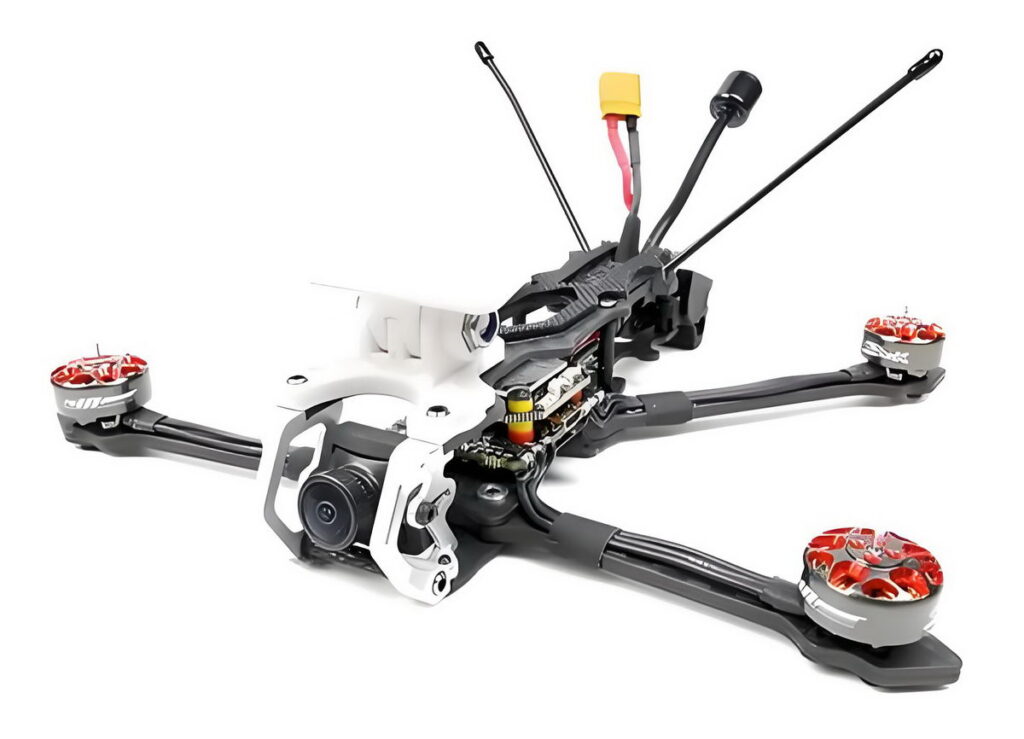

Racing drones focus on speed and agility. You will notice that these drones use lightweight frames and small, powerful motors. The key components include 5-inch propellers and compact batteries that deliver quick bursts of power. Racing drones do not carry heavy cameras or payloads. Instead, they use a first-person view (FPV) system. You wear FPV goggles to see what the drone sees in real time. This helps you make fast turns and fly through tight spaces.

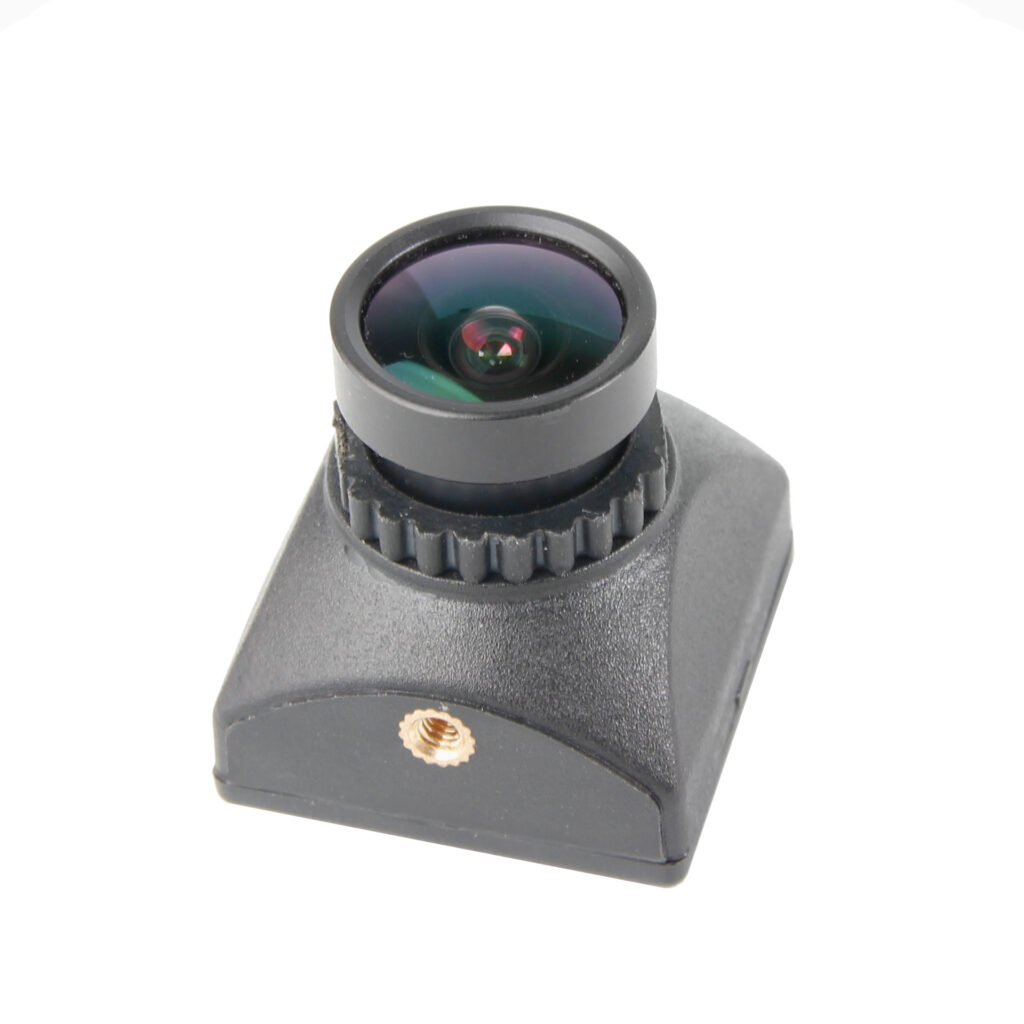

FPV systems give you a live video feed with very low delay. This lets you react quickly and control your drone with precision. Racing drones use special antennas and receivers to keep the video signal strong, even at high speeds or long distances. These drones do not need long flight times. Instead, they focus on quick acceleration and sharp maneuvers.
Auxiliary Systems
Auxiliary systems help your drone stay safe and reliable. Obstacle avoidance uses sensors like radar and cameras to spot objects around your drone. Some drones use six fisheye sensors for 360° detection, so you can fly safely even in low light. Heat dissipation systems keep motors and electronics cool during long flights. You will see reinforced materials and aerodynamic designs that help your drone handle wind and dust.
Redundancy is another key feature. If one part fails, a backup takes over. This keeps your drone flying and protects your mission. Redundant systems cover navigation, communication, and even the ground station. These key components work together to make sure your drone can handle tough jobs and keep you in control.
When you look at a drone, you see many parts working together for smooth flight and specialized tasks. You need to select the right materials and test them for strength and durability. Each drone component, from motors to sensors, impacts safety, efficiency, and performance.
Use vibration control for reliable assembly.
Factor | Why It Matters for Your Drone |
|---|---|
Longer missions and better coverage | |
Camera Quality | Clear images for mapping or inspection |
Safety Features | Protects your drone and your mission |
Always match your drone’s parts to your needs, whether for racing, farming, or photography.
FAQ
What is the most important part of a drone?
You need every part of a drone to work together. The flight controller acts as the brain. Motors and propellers give lift. The frame holds everything. If one part fails, the drone cannot fly or complete its job.
How long can a drone fly on one battery?
Most drones fly for 15 to 30 minutes on a single battery. The flight time depends on the size of the drone, the battery type, and the weight it carries. You can extend flight time by using a larger battery or a lighter drone.
Can you repair a drone if it crashes?
Yes, you can repair a drone after a crash. You may need to replace broken arms, propellers, or landing gear. Always check the flight controller and battery for damage. Many drone parts are easy to swap out with basic tools.
What sensors help a drone fly safely?
A drone uses sensors like gyroscopes, accelerometers, and barometers to stay stable. GPS helps with navigation. Some drones have obstacle avoidance sensors. These sensors work together to keep the drone safe and steady during flight.
What makes an agricultural drone different from a regular drone?
An agricultural drone has special tanks for spraying and sensors for crop monitoring. The frame resists water and chemicals. These drones use high-capacity batteries and advanced navigation. Regular drones do not have these features or mission payloads.
