What Makes 24GHz Altimeter Radar Essential for Modern UAVs

24GHz altimeter radar helps UAVs be very precise and reliable. This technology uses millimeter-wave signals to check height very accurately. It can do this even in rain, fog, or dust. The data comes in real time, so UAVs can keep steady heights. This also helps them land safely. Advanced signal processing stops noise and interference. This makes the radar work better in tough places. For example, both 0.2-3000M 24GHz Altimeter radar and 0.5-200M 24GHz Altimeter radar help UAVs fly steady. They work even when GPS signals are weak. A recent study showed these radars stay accurate and strong. They still work well even with a lot of noise.

Key Takeaways

• 24GHz altimeter radar helps UAVs know their height very well and fast. This helps them fly smoothly and land safely. This radar works even in rain, fog, or dust. It makes UAVs work well when other sensors do not. The radar is small and light, so it is easy to put on UAVs. It saves power and lets UAVs carry more things. The radar gives new height data up to 50 times each second. This helps UAVs change quickly if something happens around them. 24GHz radar is more accurate than GPS, barometric, LiDAR, and ultrasonic sensors. It also works in more types of weather and places.

24GHz Altimeter Radar Features

https://www.youtube.com/embed/dbukhxMMvu8

Frequency Band and Measurement Accuracy

24GHz altimeter radar uses a special frequency band. This band is called the 24GHz ISM band. People all over the world use this band for science and industry. You do not need a license to use it. The radar uses FMCW technology to check height. This helps it measure height very well. Some models can measure with only ±0.1 meters of error from 0.5 to 30 meters. Other advanced models can reach 100 meters with just ±1 meter of error. The radar can update its data 50 times every second. This fast speed lets UAVs react quickly to changes in height.

FMCW radar at 24GHz is very good at measuring distance and speed. It helps UAVs fly safely and smoothly. UAVs can fly close to the ground or over bumpy land.

Environmental Adaptability

24GHz altimeter radar works in many types of weather. Rain, fog, dust, and snow do not stop it from working. Studies show that 24GHz millimeter-wave radars are not bothered by bad weather. This makes them better than LiDAR or camera sensors. Some radar modules have IP65 or IP67 ratings. This means they keep out water and dust. UAVs can use these radars for mapping, farming, and rescue jobs in hard places. The radar also works well even with bright sunlight or other strong lights. It is not easily affected by other electronics.

Feature/Specification	Description
Radar Technology	24GHz FMCW radar that follows global rules
Environmental Adaptability	Works well in fog, dust, strong light, night, and tough weather
Protection Rating	IP67 waterproof and dustproof seal
Measurement Range & Accuracy	Can measure up to 100 meters with 0.1m accuracy
Output Frequency & Latency	Updates 50 times per second with 100ms delay
Operating Voltage Range	Works with 5V to 28V power systems
Operating Temperature Range	Can work from -20°C to +85°C
Anti-Interference	Strong at blocking interference because of 24GHz band
Sensitivity	Very sensitive, works well in all weather

Miniaturization and Integration

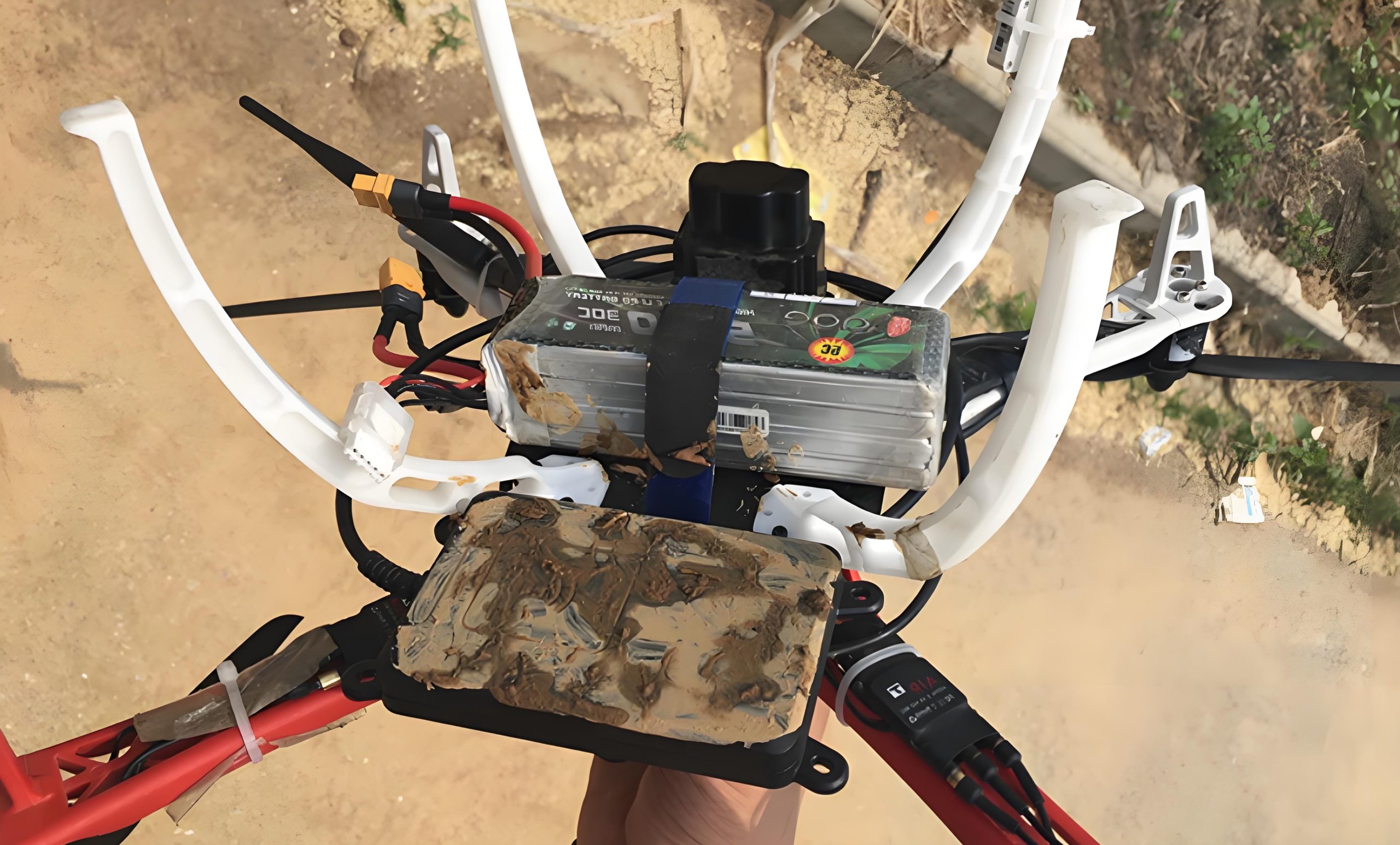

Many 24GHz altimeter radar modules are small and light. This makes them easy to put on any UAV. For example, the CUAV ISTRA24 radar is only 45 x 45 x 6 mm and weighs 6.5 grams. Bigger models like the Nanoradar NRA15 are still small at 102 x 56 x 10.5 mm and 0.5 kg. Small size and low weight help UAVs save power. UAVs can carry more sensors or other things. Most modules use simple connections like UART. This makes them easy to connect to flight controllers.

Radar Module	Size (mm)	Weight
CUAV ISTRA24	45 x 45 x 6	6.5 g
Nanoradar NRA15	102 x 56 x 10.5	0.5 kg (500g)

Real-Time and Multi-Target Detection

24GHz altimeter radar gives real-time height data. It updates its measurements up to 50 times each second. This quick response helps UAVs change their flight right away. The radar can track the ground or other surfaces below the UAV with almost no wait. Most UAVs use the radar to track one thing at a time. This helps the radar measure height as accurately as possible.

Parameter	Value
Frequency Band	24.0-24.25 GHz
Update Rate	50 Hz
Altitude Range	0.2 m to 50 m

24GHz altimeter radar is great for measuring height very accurately. It blocks interference, is small, uses little power, and gives fast results. It meets global ISM band rules and costs less than higher-frequency radars. These features make it a smart pick for today’s UAVs.

Applications in UAVs

Altitude Hold and Flight Stability

UAVs must keep the same height when flying. This is very important near the ground or inside buildings. The 24GHz altimeter radar gives height data right away. UAVs use this data to change their height fast. This helps even if GPS does not work well. For example, the Nanoradar NRA24 works with Ardupilot and Pixhawk. UAVs use this radar to stop sudden drops or climbs. This makes flying smoother and safer.

Precision Landing

UAVs need to land in small or rough places. The VK VRT24-S1 radar helps them land within 0.1 meters. This means UAVs can land safely on small pads or bumpy ground. The radar works in fog, dust, or at night. It updates fast and is built strong. UAVs can land safely in many places. This lowers the chance of damage.

Terrain Following and Obstacle Avoidance

UAVs fly over fields, hills, and forests. The ground can change quickly in these places. The 24GHz radar helps UAVs follow the ground shape. It also helps them miss things like wires or branches. Models like DJI MG-1S and XAG P Series use this radar. They can spot changes in the ground and see small objects. The radar lets UAVs hover or change height to stay safe. The chart below shows how UAVs use 24GHz radar for these jobs.

All-Weather Operation

UAVs must work in rain, fog, or dust. The 24GHz altimeter radar uses microwaves that go through bad weather. It keeps checking height even if LiDAR or cameras stop. Many radar modules have strong cases and update quickly. UAVs with this radar can fly in hard weather, day or night. They still get good height data.

Tip: UAVs with 24GHz radar can fly and land safely. They work well even in bad weather or when the ground is hard to see.

Comparison with Other Technologies

GPS and Barometric Sensors

UAVs use GPS and barometric sensors to check height. But these sensors have some problems. GPS needs signals from satellites. If UAVs fly inside or near tall buildings, GPS can stop working. Barometric sensors use air pressure to guess height. They are not very good at low heights or when the weather changes fast.

The table below shows how 24GHz altimeter radar is different from GPS and barometric sensors:

Aspect	24GHz Radar Altimeter	GPS Sensor	Barometric Sensor
Altitude Accuracy (Low Altitude)	±0.015m to ±0.075m	Varies with signal	Less accurate
Environmental Robustness	Works in rain, dust, fog	Signal loss possible	Sensitive to weather
Operational Independence	No external signals needed	Needs satellites	No external signals
Update Rate	Fast (up to 50 Hz)	Varies	Varies

24GHz altimeter radar gives exact height data right away. It works even when GPS or barometric sensors do not. UAVs can fly safely when GPS is weak or in bad weather.

LiDAR and Ultrasonic Sensors

LiDAR and ultrasonic sensors also help UAVs know how far they are from the ground. LiDAR uses lasers. It works best when the weather is clear. It does not work well in fog, rain, or dust. Ultrasonic sensors use sound waves. Their results change with temperature, wet air, or loud noise.

• 24GHz radar sensors work in rain, fog, and dark places.

• They can measure from a few centimeters to hundreds of meters.

• LiDAR needs nothing in the way to work. Radar does not need this.

• Ultrasonic sensors do not reach far and can be tricked by loud sounds.

A 24GHz radar module is small and light. It does not use much power. UAVs can use it for many jobs without getting heavy.

Unique Benefits of 24GHz Altimeter Radar

24GHz altimeter radar is special because it is very accurate, works in bad weather, and is easy to use. It can measure height to the centimeter, even in tough weather. UAVs can trust it to fly steady, land safely, and avoid things. The radar works with most flight controllers. It does not need special setup. Its small size and low price make it a good pick for new UAVs.

Tip: UAVs with 24GHz altimeter radar can fly safely and know their height, even if other sensors stop working.

UAVs need sensors that are both reliable and accurate for the future. Some important trends are making sensors smaller, more exact, and easier to use together.

• UAVs with good radar can fly safely in bad weather like fog, rain, or snow.

• These sensors help drones do jobs in farming, keeping places safe, and checking things.

• Improved sensors help follow new rules and let more drones fly by themselves.

• When radar works with AI, UAVs get smarter and can do more.

UAVs using these new tools will be the best in safety and how well they work.

FAQ

What makes 24GHz altimeter radar better than LiDAR for UAVs?

24GHz radar works well in rain, fog, and dust. LiDAR struggles in these conditions. UAVs with radar can fly safely when the weather is bad. Radar also uses less power and weighs less than most LiDAR units.

Can 24GHz altimeter radar work indoors?

Yes, 24GHz altimeter radar works indoors. It does not need GPS or sunlight. UAVs can use it to keep a steady height inside buildings, tunnels, or warehouses.

How does 24GHz radar help with safe UAV landings?

The radar gives real-time height data. UAVs use this data to slow down and land gently. This reduces the risk of damage, even on rough or small landing spots.

Is 24GHz altimeter radar easy to install on UAVs?

Most 24GHz radar modules are small and light. They use simple connections like UART. Many flight controllers support these radars. UAV makers can add them without much trouble.

Does 24GHz radar interfere with other devices?

No, 24GHz radar uses the ISM band. This band is set aside for safe use in many devices. The radar does not cause problems for other electronics on the UAV.
