Millimeter Wave Radar Sensor: 77 GHz Automotive Safety Radar

Model No.: CAR-A60-2

INTRODUCTION:

77 GHz millimeter wave automotive safety radar, CAR-A60-2 is the new generation short range wideband, high-resolution automotive radar sensor built with customizable cutting edge radar technologies. It is built on Millimeter wave technology allowing for ultra-low power consumption and low unit cost. The sensor’s highly integrated hardware, advanced radar signal processing algorithms enable 360 surround high-resolution detection when multiple units conﬁgured on the vehicle, and allow semi-autonomous or fully autonomous driving.

The ultra high range resolution, faster update rates, CAN-FD data link options make it a great solution to implement sensor fusion for ADAS and self-driving applications.

These millimeter wave radar sensors provide an ideal solution for low-power, self-monitored, ultra-accurate radar systems in industrial applications, such as building automation, factory automation, drones, material handling, traffic monitoring, and surveillance.

APPLICATIONS

Large vehicle parking sensor
Forward collision warning
Headway monitoring warning
Automatic emergency braking
Pedestrian and cyclist collision
Adaptive cruise control

Data Sheet:

FEATURES	ITEMS	TECHNICAL DATA
System property	Working voltage	8-36VDC
	Working temperature	-40~85℃
	Power consumption	less than 2W
	Waterproof rating	IP67
	Working band	77-81GHz
	Refresh rate	20Hz
	Communication interface	CAN
	Size	66mm x 61mm x 23mm
	Weight	133g
Antenna performance	Transceiver channels	2TX / 4RX
	Pitch beam width	+/- 10°
	Horizontal beam width	+/-60°
Detection performance	Distance resolution	0.18m
	Speed resolution	0.25m/s
	Speed range	+/- 180KM/H
	Ranging accuracy	Better than 0.18m
	Speed measurement accuracy	0.1m/s
	Angle measurement accuracy	0.1°
	Detect distance	0.5-30M
Upgrade/Debug	Firmware Upgrade	CAN/UART
Upgrade/Debug	Data Calibration	CAN/UART

Connector Define:

77GHz-Millimeter-Wave-Radar-Sensor-Connector

Detect Range: 40 or 80M optional; 120 degrees

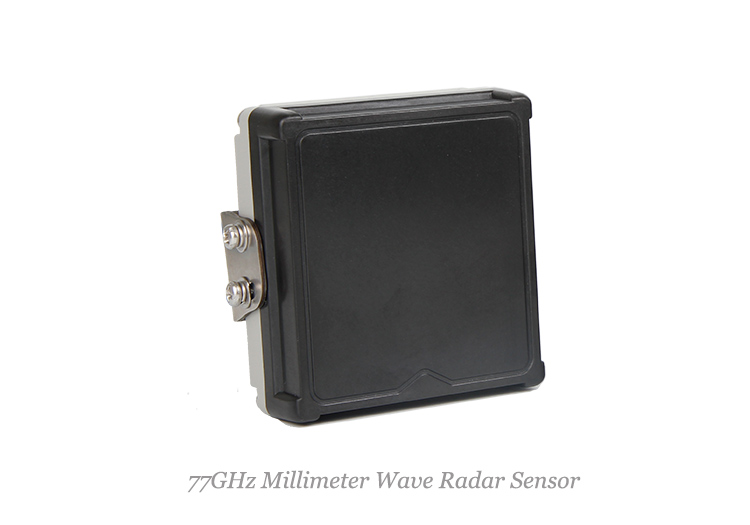

Appearance:

With the ruggedized design and the considerations for industrial and specialty vehicles, CAR-A60-2 automotive radar sensors IP68 can be strategically placed on the exterior of the vehicle and deliver the superior performance in all tough working environment.

https://www.high-endrolex.com/49

Millimeter Wave Radar Sensor Test Tools:

This Test demo is for CAR-A60-2 radar sensors test based on Windows OS. Connect with PC for testing, there are CAN tools needed in the sensor and PC connection, typical CAN tools is CANalyst-II and USB-CAN-2EU. For sample order, we normally offer 1 of CANalyst-II tools for user easier conect and test.
