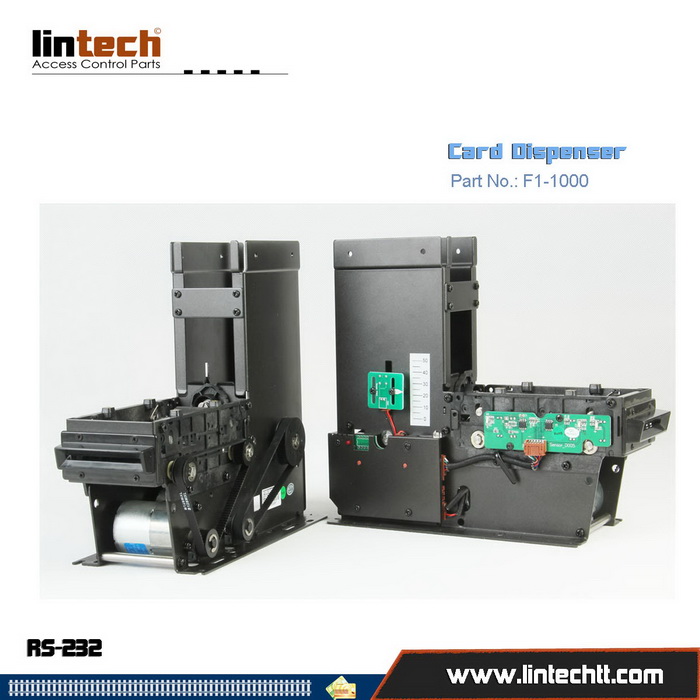

Model No.: F1-1000

FEATURES:

1. This card dispenser unique transfer wheel design for Accurate issuing any card even for concavo-convex character number card
2. Simple, convenient, stable and accurate adjusting kinds of different thickness for issuing different cards
3. Compact size design to save the installation space
4. Reclaim card tank design in rear of machine for easy management

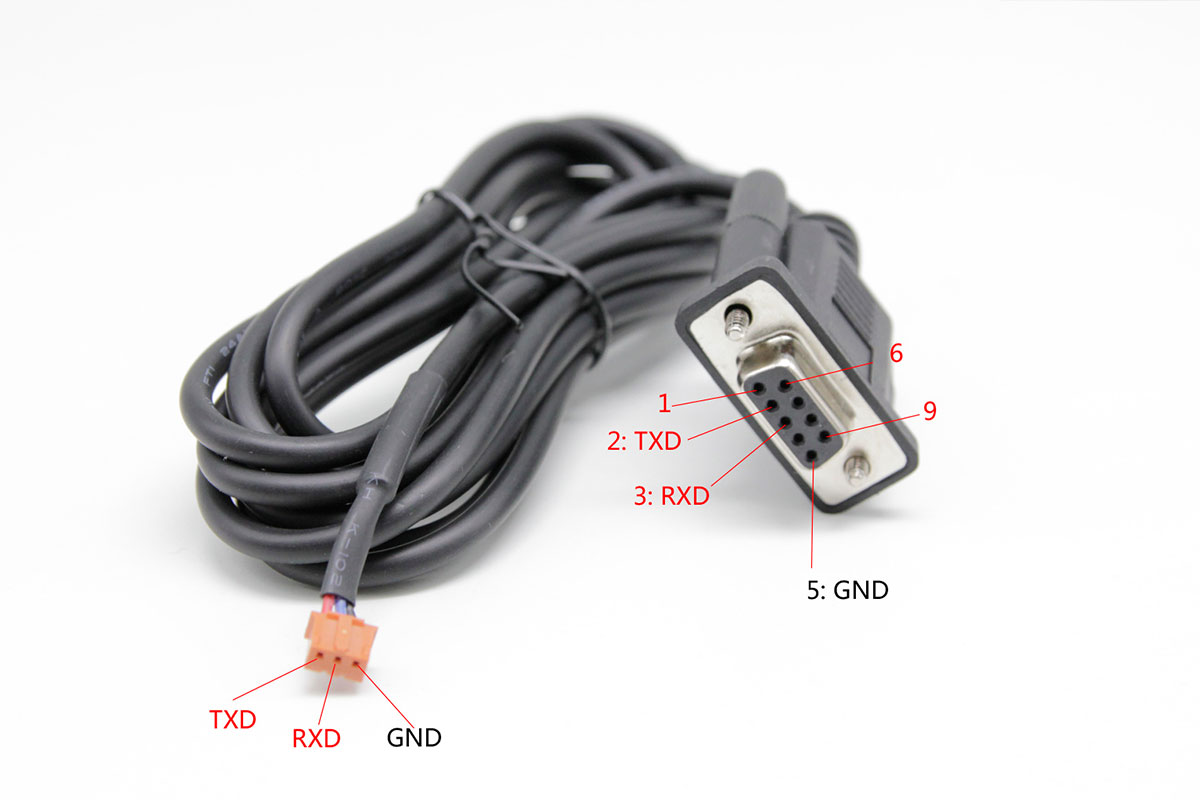

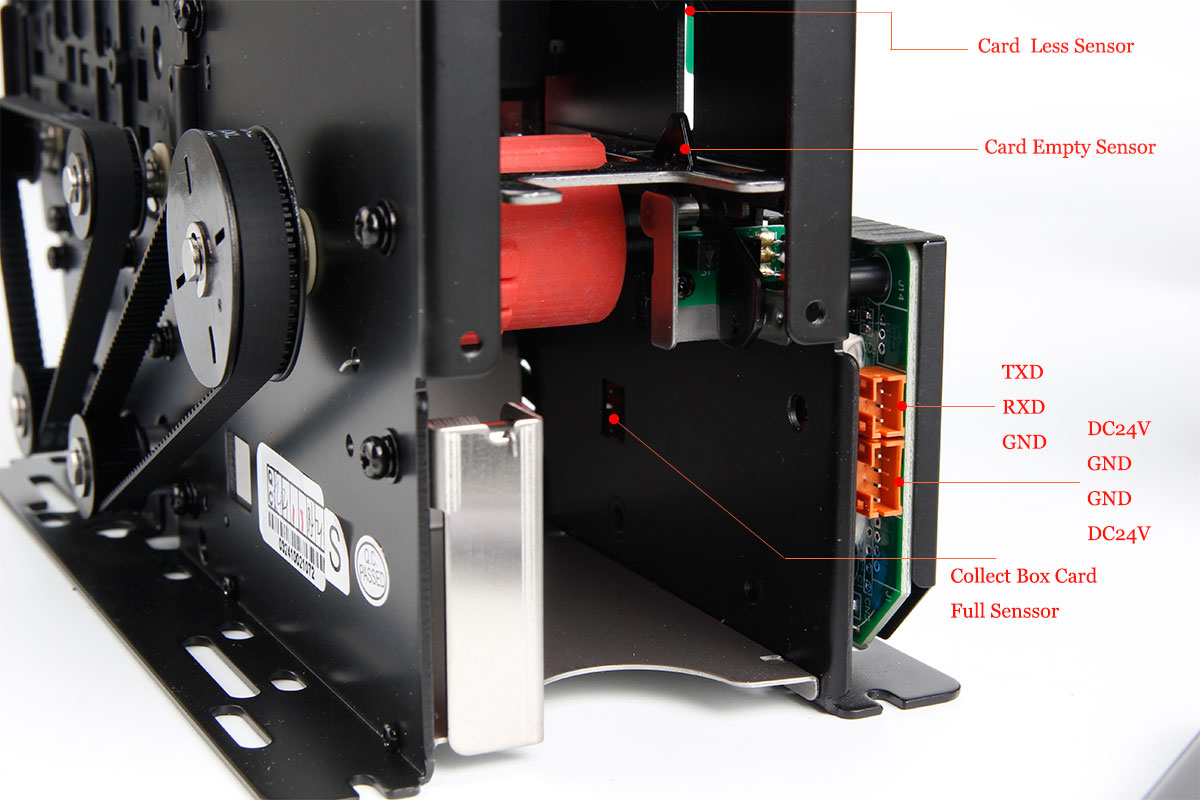

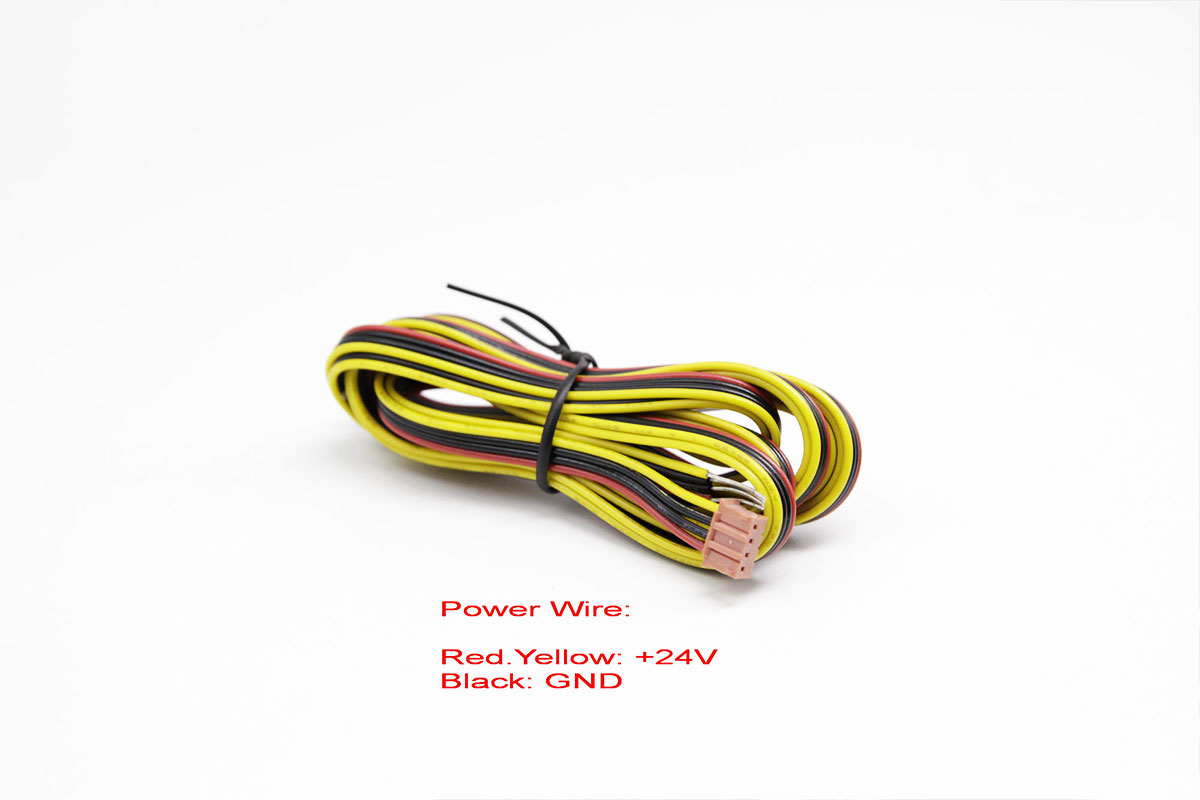

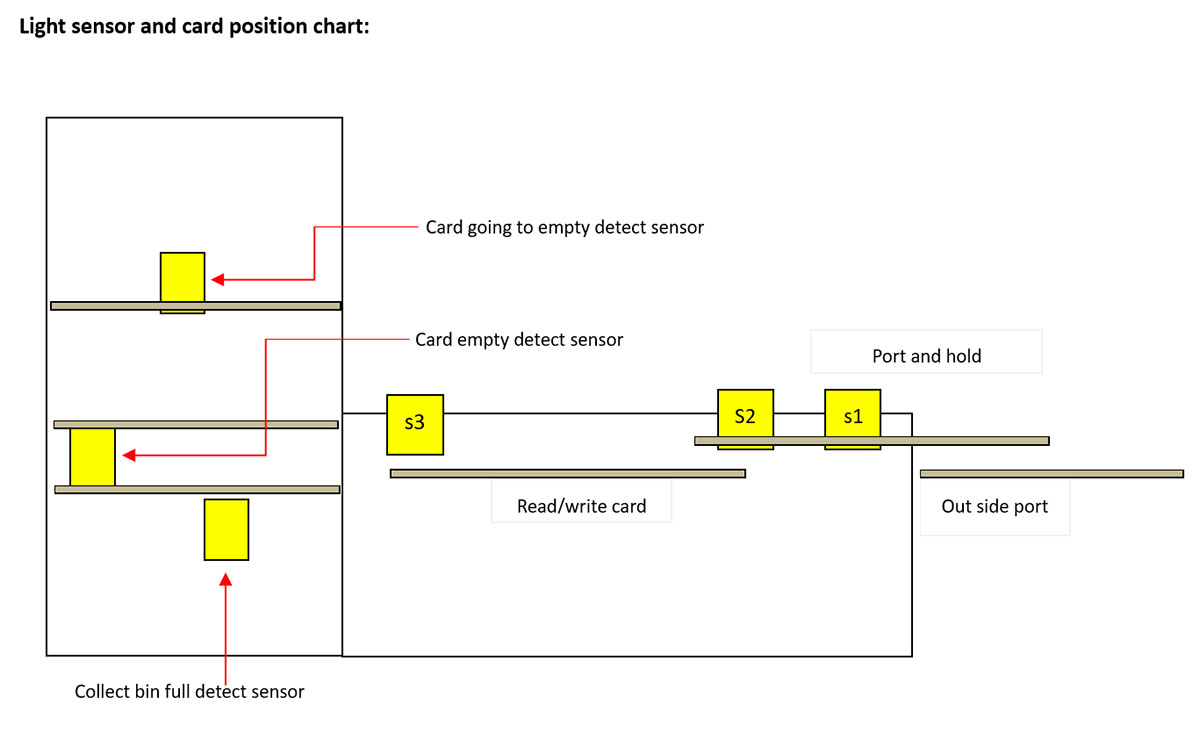

5. Couple of sensor can detect reclaim card tank is full, card tank empty alarm, card position detect etc, can easy distinguish card position and status.
6. High strength and durable engineer plastic card channel make sure RF card read/write steady
7. Industry conceiving, surface dealing with roast paint, well bearable cubing and rotting. Be suitable to all kinds of bad environment, such as high, low, and mush dust, etc.
8. Multi- sensor protect function prevent outer light interference to sensor

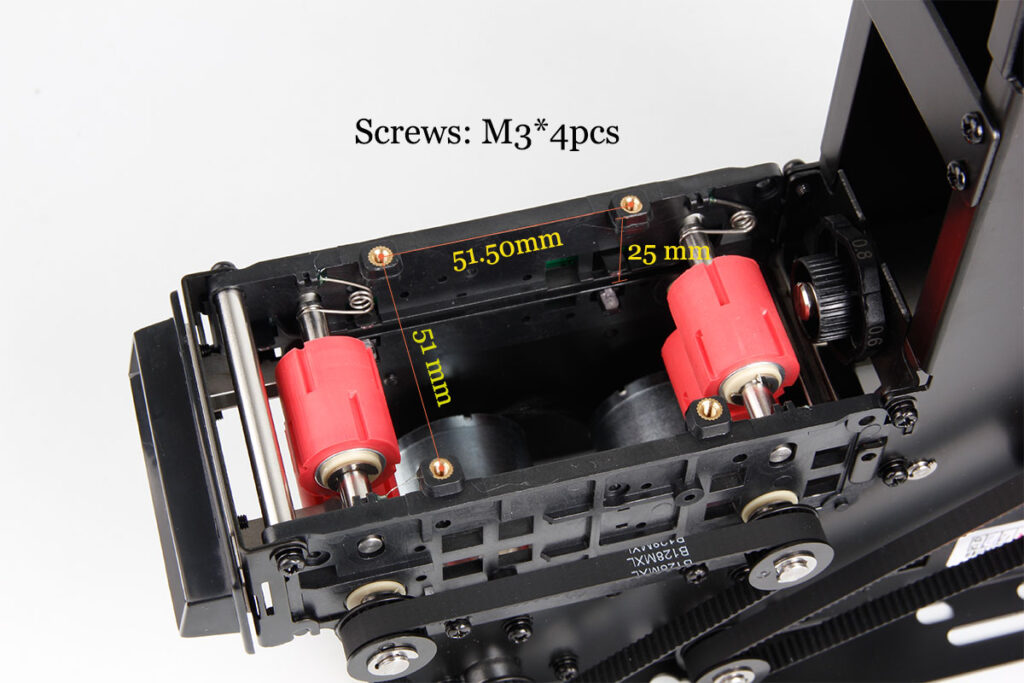

9. Pre-reserved card reader installation position for RF card reader, barcode reader.

APPLICATIONS:

• Parking lot card issuing system
• Self-Service Machines
• Automatic ticketing machines

F1-1000 Operate Card Size:

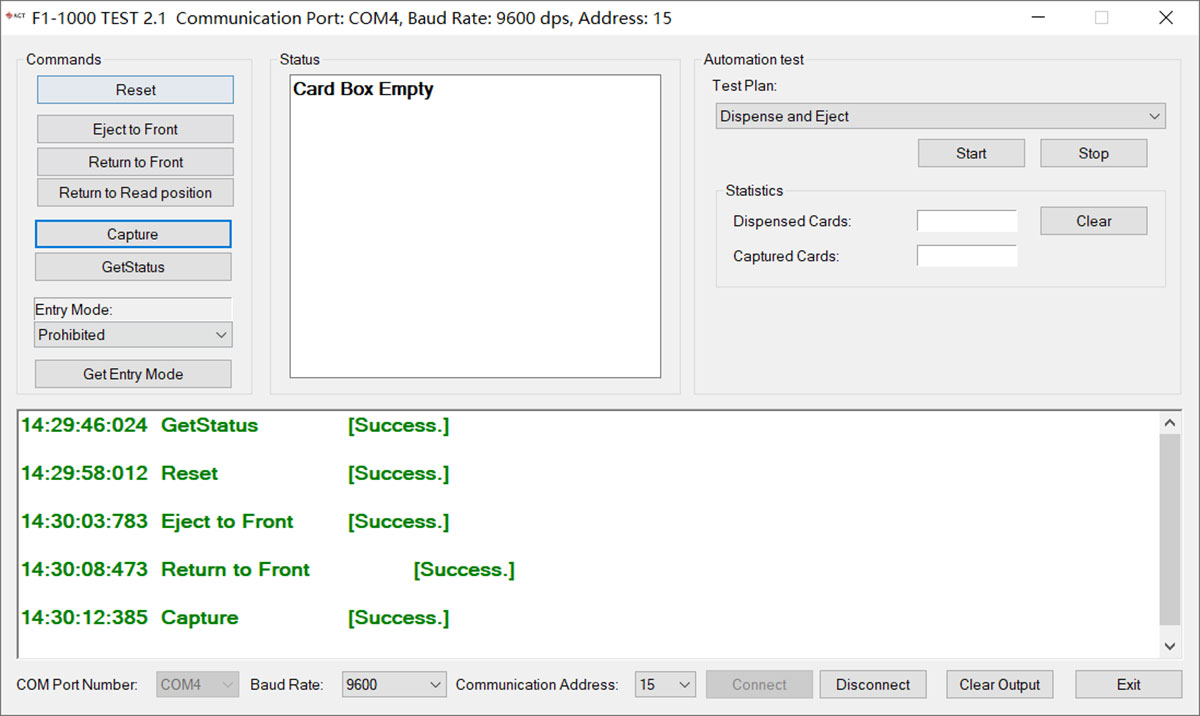

F1-1000 Test Demo Fig.:

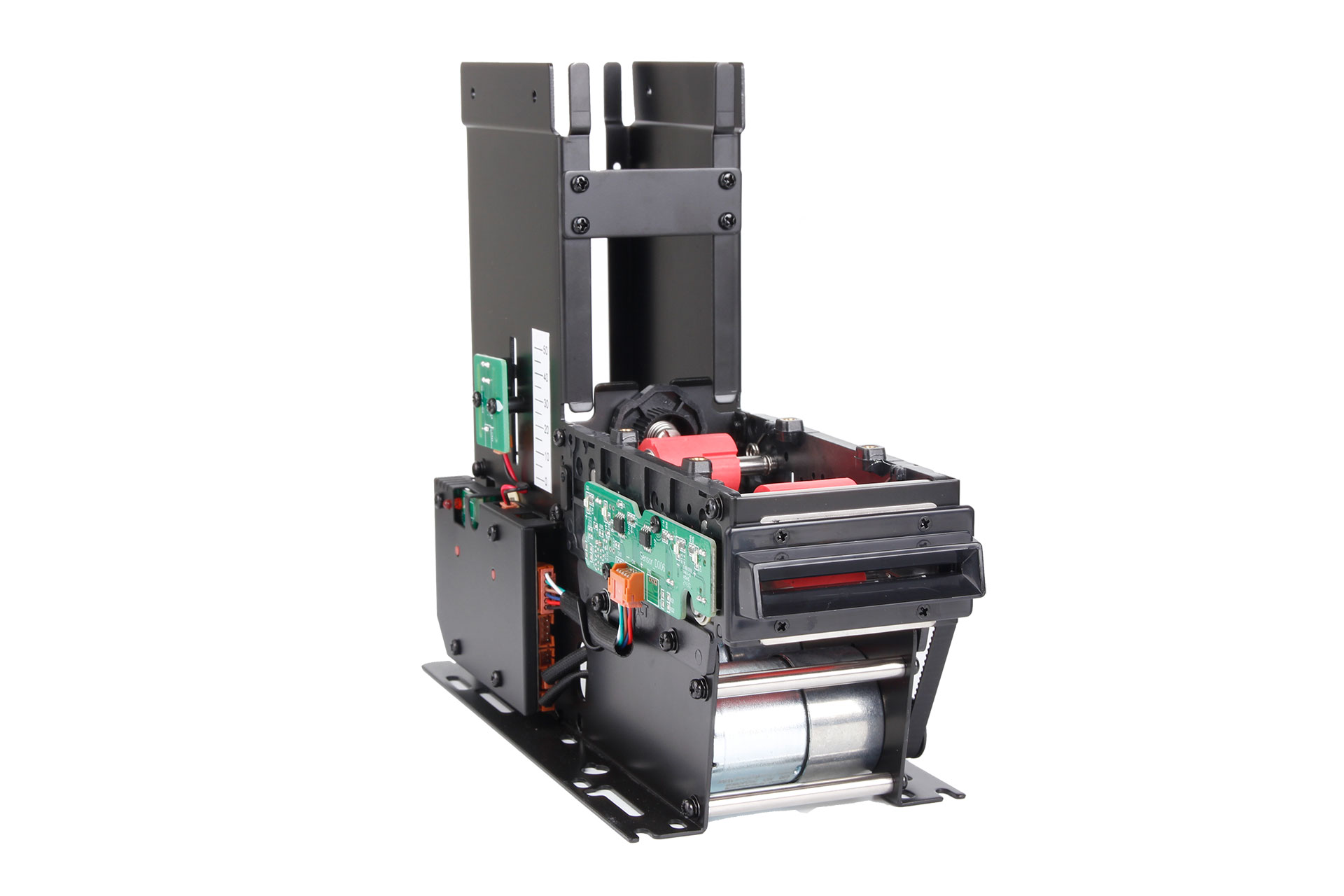

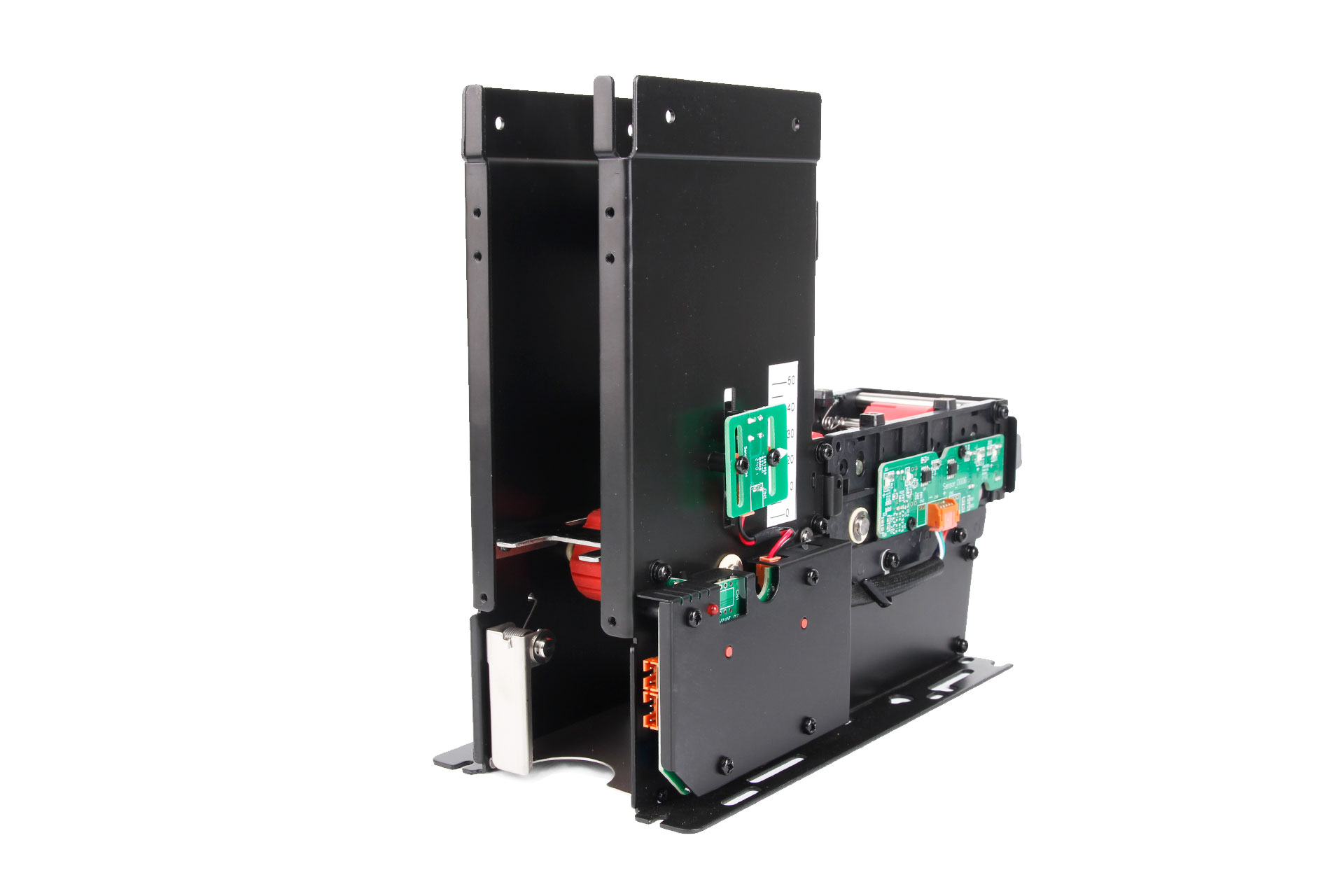

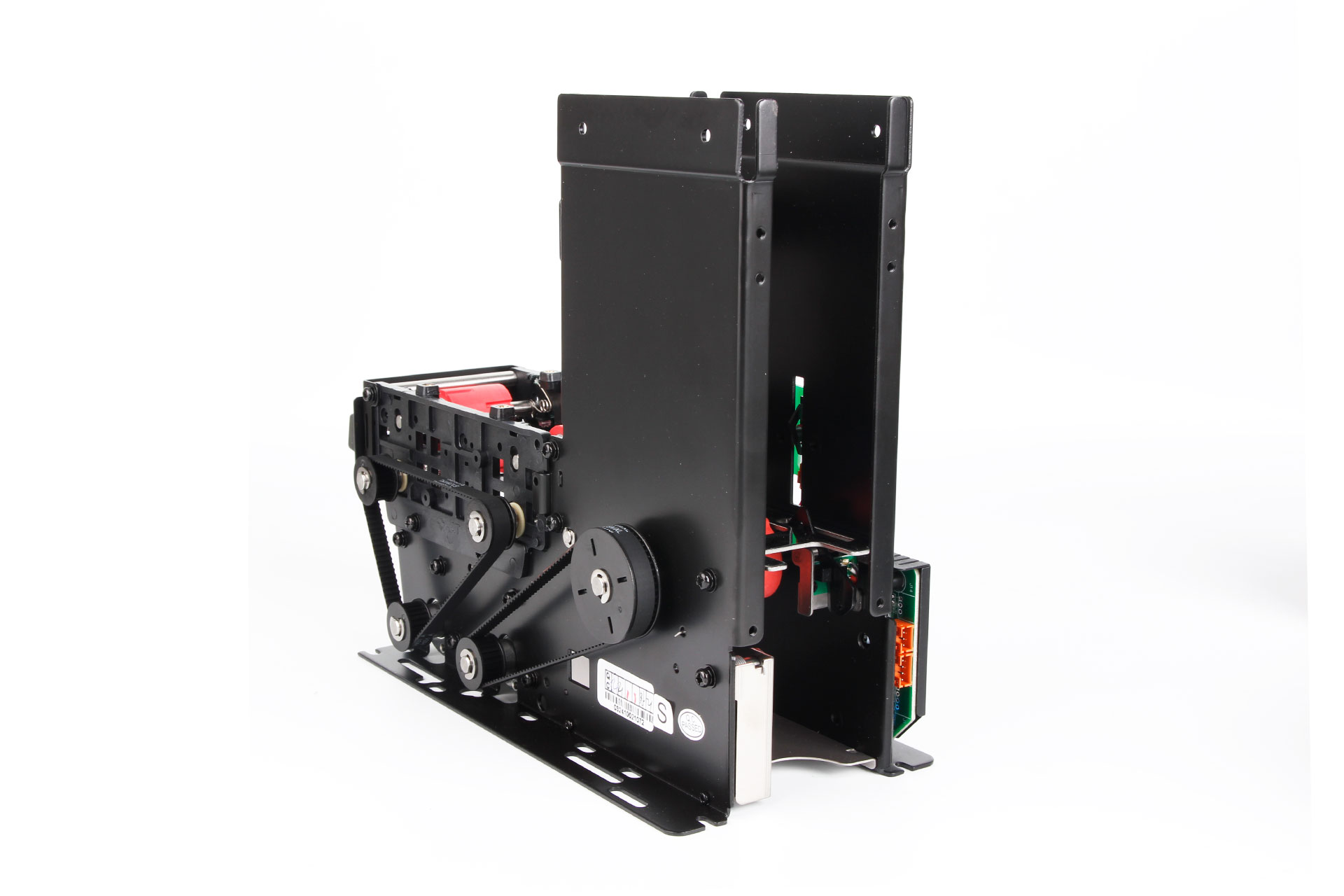

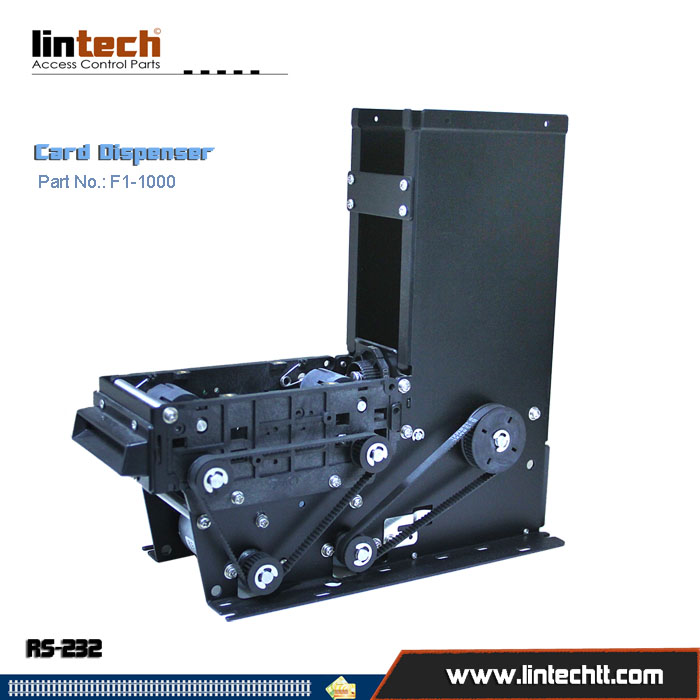

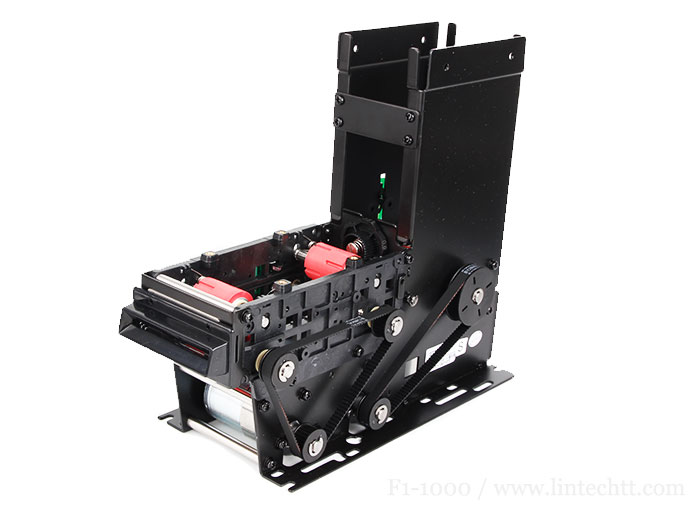

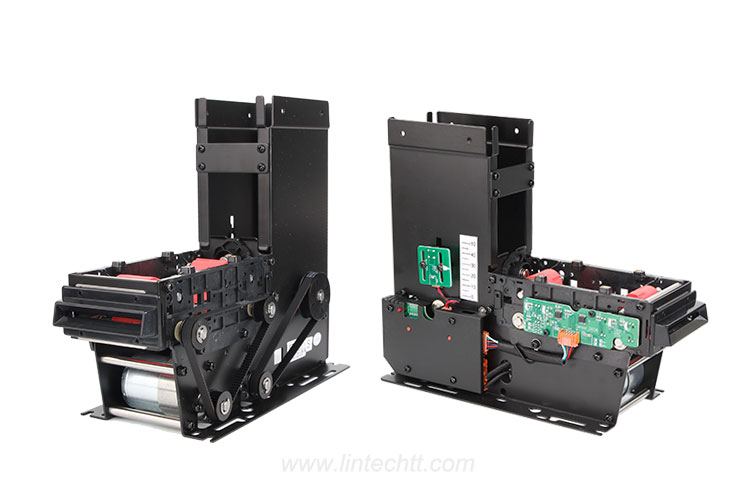

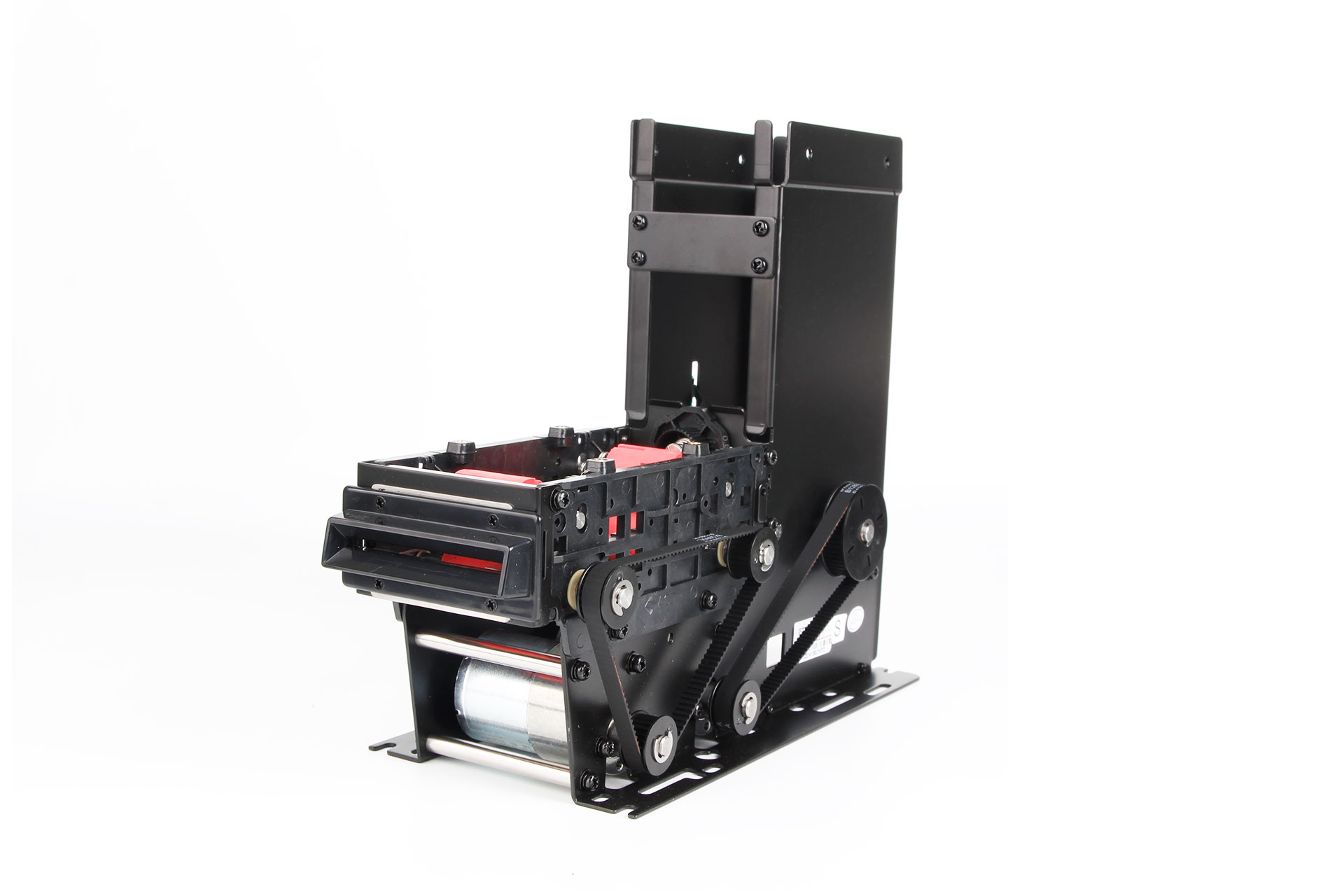

More Photos of F1-1000 card dispenser:

Video for F1-1000 Card Dispenser

About Command Codes:

Example:

Full Commands for reference:

02 31 35 46 43 34 03 34 // Card issued to front card holder (roller clamps card)
06 31 35 // Returns confirmation command
05 31 35 // Confirms command

02 31 35 46 43 30 03 30 // Card issued to exit (roller does not clamp card)
06 31 35 // Returns confirmation command
05 31 35 // Confirms command

02 31 35 46 43 36 03 36 // Card issued to card reader
06 31 35 // Returns confirmation command
05 31 35 // Confirms command

02 31 35 43 50 03 16 // Card retracted
06 31 35 // Returns confirmation command
05 31 35 // Confirms command

02 31 35 52 53 03 04 // Reset the card dispenser
06 31 35 // Return confirmation command
05 31 35 // Confirm command

————————————————-
send: 02 31 35 52 46 03 11 // Get card dispenser status (non-advanced)
“R” “F”

05 31 35 // Confirm command
ret: 02 31 35 53 46 30 31 36 03 27 // Return card dispenser status

Return status data analysis: The three bytes before the ETX terminator 03 are: 30 31 36
Subtract 30 from each, and the result is 0x00, x001, 0x06. Converted to binary, this is:
0000 Card pre-emptive, 0001 Cards almost dispensed, 0110 Card in the card reader position

——————————————————

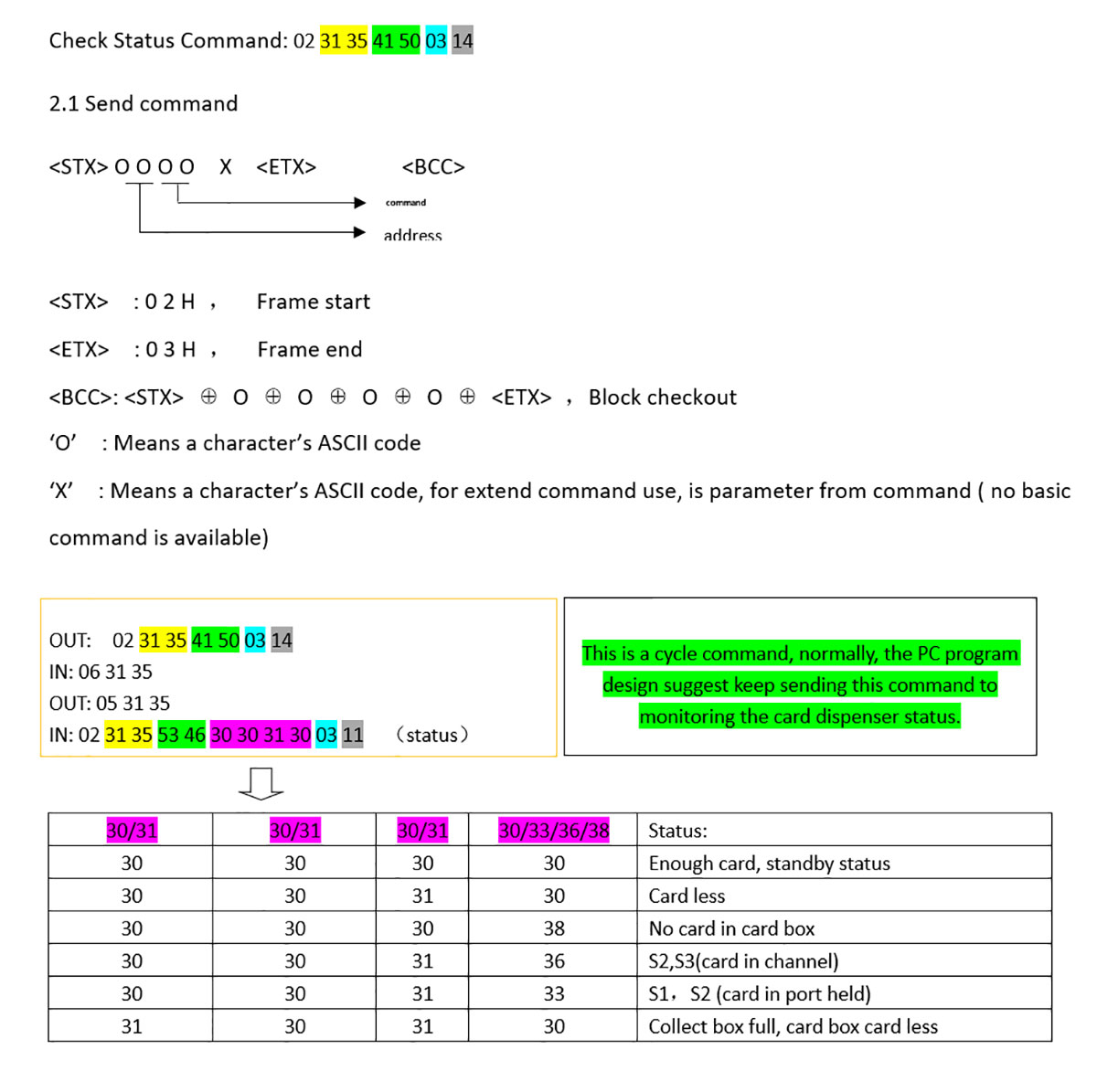

send: 02 31 35 41 50 03 14 //Get card reader status (advanced)
“A””P”

05 31 35 //Confirm command
ret: 02 31 35 53 46 30 30 31 30 03 11 //Return card reader status

Return status data analysis: 4 bytes of data 30 30 31 30

Analysis according to the table: Subtracting 0x30 yields 0000 0000 0001 0000

Calculation yields 0010, indicating: Card pre-empty, almost exhausted. No card in S1, S2, or S3.
————————————————————

Card input mode
02 31 35 53 49 03 1F

(Click Here for the full command list …)
