Model No.: TSC224
INTRODUCTION:

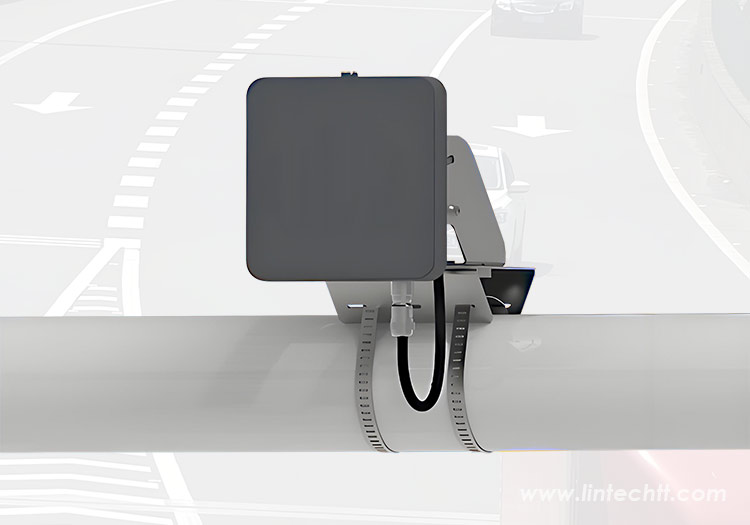

TSC224 is a high-performance multi-lane speed measuring radar. It adopts “MIMO + DBF” technology, is installed above the road, supports front and side installation, and can detect and track multiple vehicle information in multiple lanes in real time, with accurate positioning and high capture rate. TSC224 A radar can detect the speed of vehicles in up to four lanes, cooperate with the camera to complete the capture of speeding vehicles, and the capture rate is as high as 99%.
Series：
24GHz MMW radar
Application：
speed law enforcement, lane-level early warning, traffic monitoring and other scenarios
Features：
Ultra-strong perception, Lane-level target detection，24GHz-ISM frequency band, One radar can detect the speed of vehicles in up to 4 lanes，Vehicle capture rate ≥ 99%

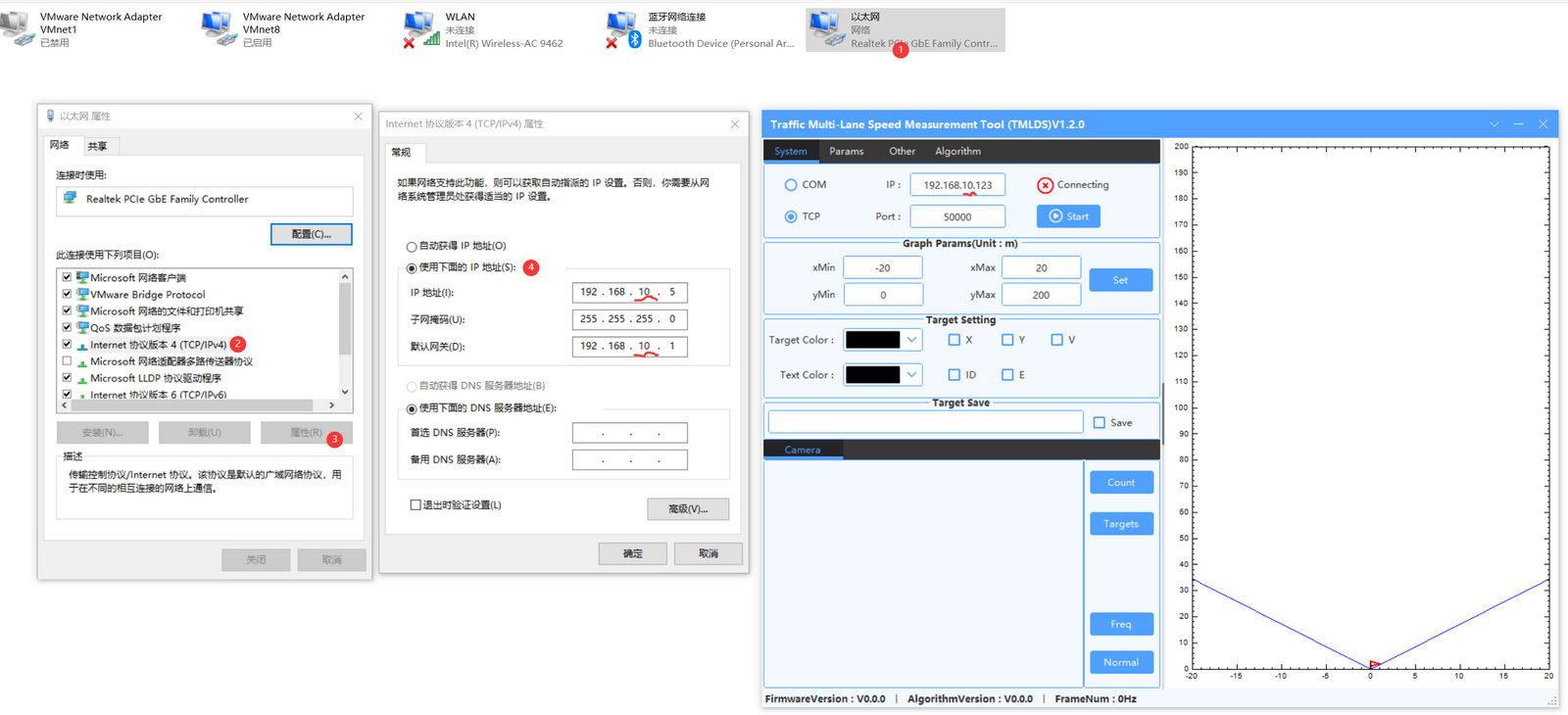

Simple installation and debugging: The radar integrates the lane sight, level and gyroscope,support WIFI and WEB service
All-day and all-weather, IP67 protection, applicable to all kinds of bad weather environment,such as rain, snow, fog,dust, etc
Deep opening of 10 + algorithm parameters,and accurately adapt to diversified traffic scenarios
